Tripp Lite SU1500XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)

Tripp Lite SU1500XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)

SmartOnline 100-127V 1.5kVA 1.35kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1500VA 1350W UPS SMART ONLINELCD TOWER 120V USB DB9 SNMP

 565563 Register free see stock
Arlington Industries

1500VA/1350W 6-OUT ON-LINE UPS LCD

 TRPSU1500XLCD
ASI Corp

Tripp Lite UPS SU1500XLCD SmartOnline 1.5kVA Tower 1350W 100 110 120 127V RTL

 136788
BlueStar

EATON, UPS SMART 1500VA, TOWER, LCD, USB, DB9

 SU1500XLCD

Related Products

Description

Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU1500XLCD SmartOnline® Tower UPS System is the solution! Featuring a 1500VA/1350W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU1500XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. The SU1500XLCD has 6 5-15R outlets, including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU1500XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time

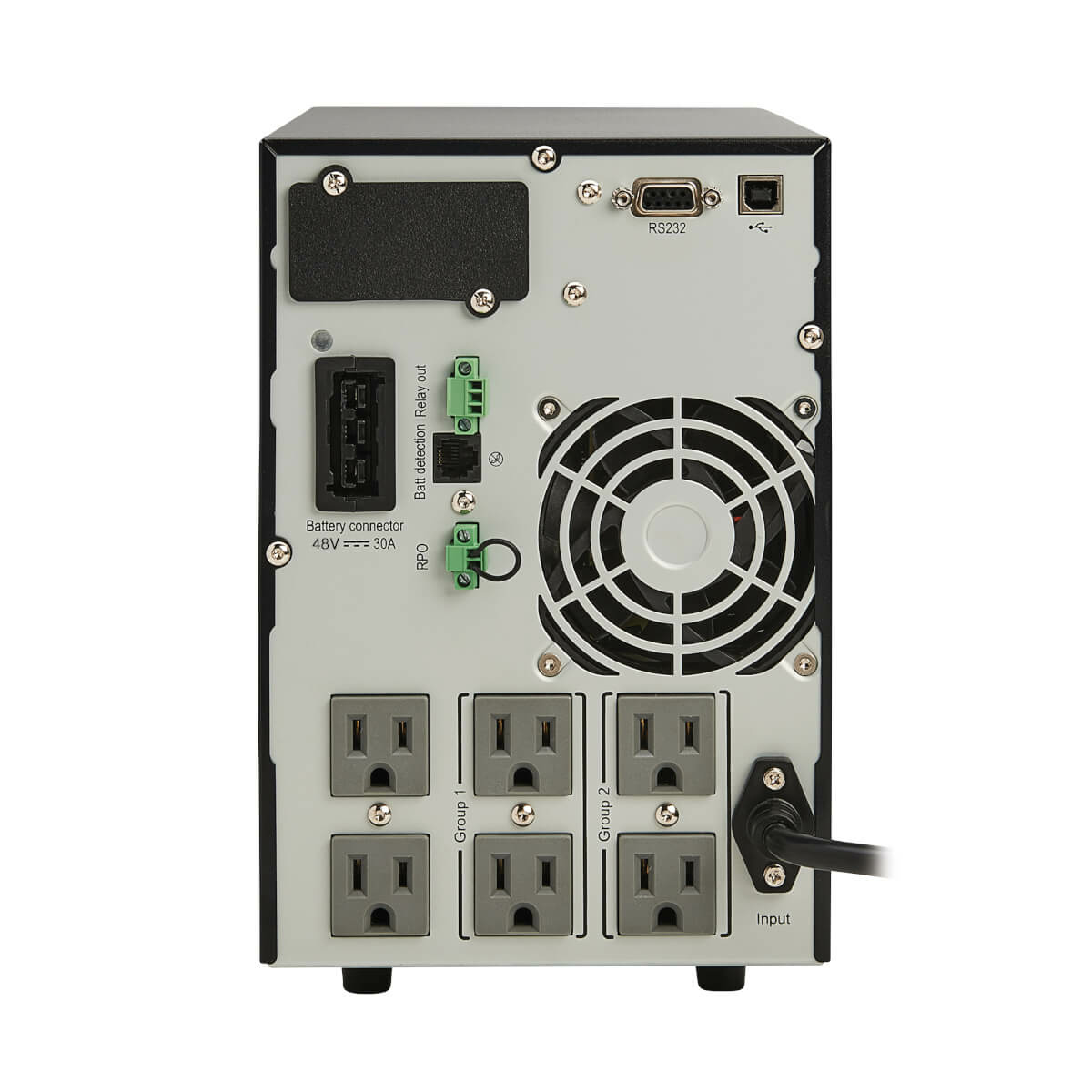

- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind

Specifications

Power
Output voltage regulation2%
Output power1350 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current12 A
Emergency Power Off (EPO)Yes
Crest factor3:1
Output power capacity1.5 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
RS-232 ports1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Off-mode chargingYes
Auto-restartYes
LED indicatorsCharging, Power
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation2%
Auto-restartYes
Output power1350 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current12 A
Emergency Power Off (EPO)Yes
Crest factor3:1
Output power capacity1.5 kVA
Input frequency50/60 Hz
Battery
Off-mode chargingYes
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load14 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsCharging, Power
Product colourBlack
Cooling typeActive
Cable length118.1" (3 m)
Built-in fanYes
Housing materialMetal
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Certificates
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width12.9" (327.7 mm)
Package depth23.3" (591.8 mm)
Package height14.8" (375.9 mm)
Weight40.8 lbs (18.5 kg)
Width9" (228.6 mm)
Package weight54.9 lbs (24.9 kg)
Height10.2" (259.1 mm)
Depth19.5" (495.3 mm)
Packaging data
Package width12.9" (327.7 mm)
Package depth23.3" (591.8 mm)
Package height14.8" (375.9 mm)
Package weight54.9 lbs (24.9 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width12.9" (327.7 mm)
Master (outer) case length23.3" (591.8 mm)
Master (outer) case height14.8" (375.9 mm)
Master (outer) case gross weight54.9 lbs (24.9 kg)
