Tripp Lite SR18UB rack cabinet 18U Freestanding rack Black

Tripp Lite SR18UB rack cabinet 18U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR18UB
  • EAN: 0037332178039 0742527078888 03 ...7078888 0373321780396more
SmartRack 18U Mid-Depth Half-Height Rack Enclosure Cabinet

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "18U RACK ENCLOSURE SERVERCABINET 33"" DEEP W/ DOORSBLACK" 565451 Register free see stock
Arlington Industries 18U MID-DEPTH 1000LB RACK ENCLOSURE TRPSR18UB
BlueStar TRIPP LITE, 18U RACK ENCLOSURE SERVER CABINET, 33 INCHES DEEP WITH DOORS AND SIDES SR18UB
D&H 18U Rack 33" Deep SR18UB
Ingram Micro 18U RACK ENCLOSURE CABINET RA1698
ScanSource Tripp Lite 18 U Rack Enclosure Cabinet POW-SR18UB
TD Synnex 18U RACK ENCLOSURE CABINET 33IN DEEP 3565780

Related Products

Description

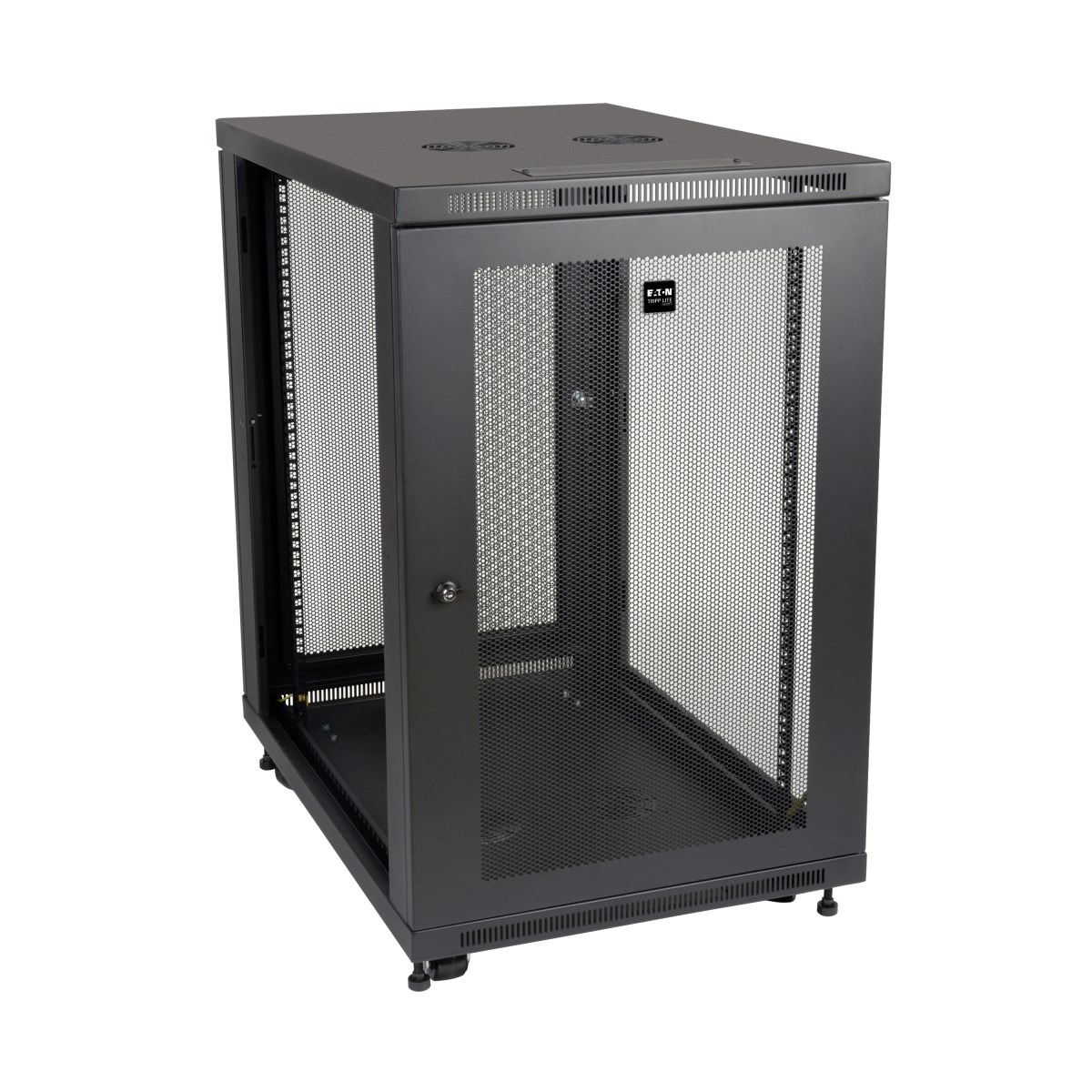

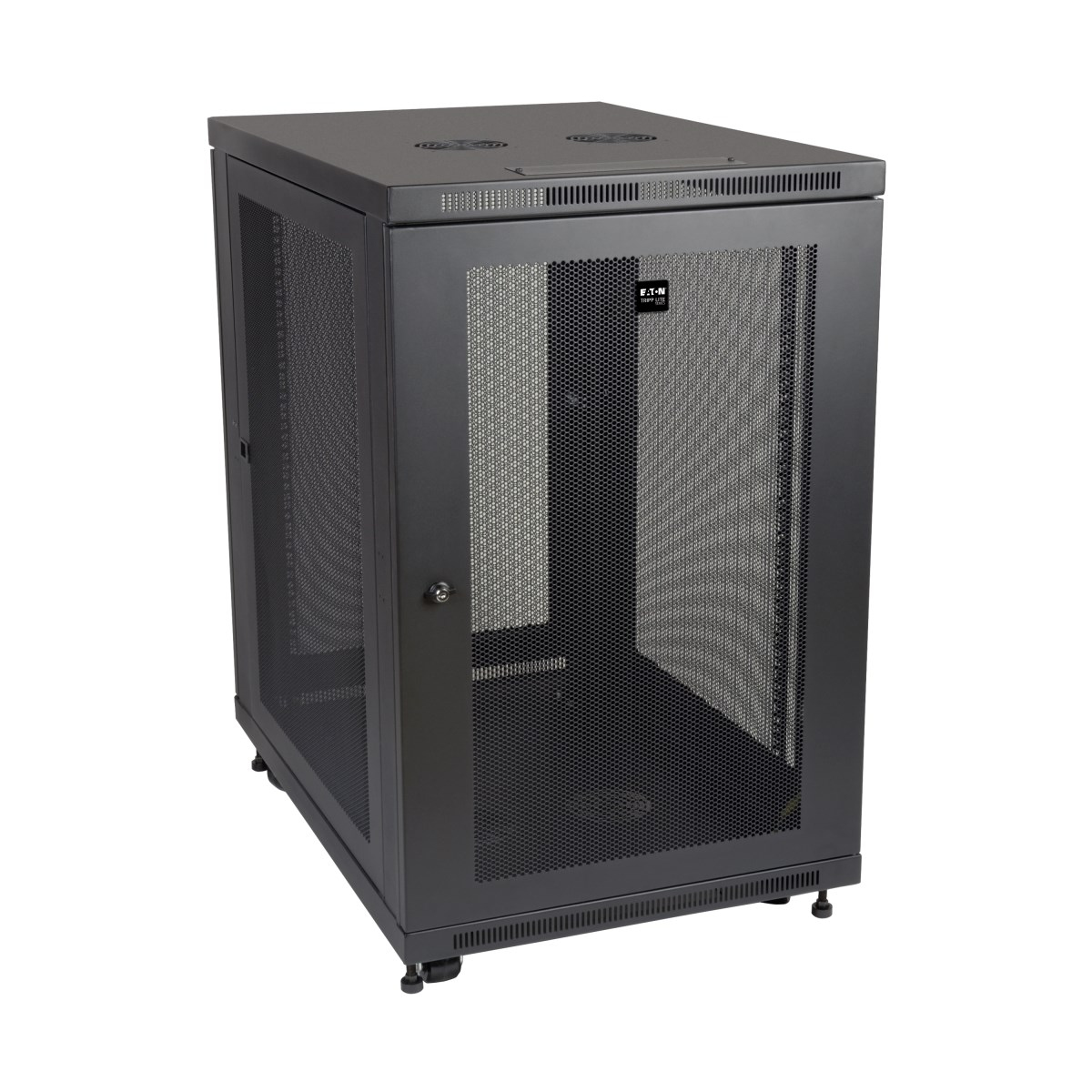

This SmartRack® 18U Mid-Depth Rack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. The SR18UB ships fully assembled for quick installation.

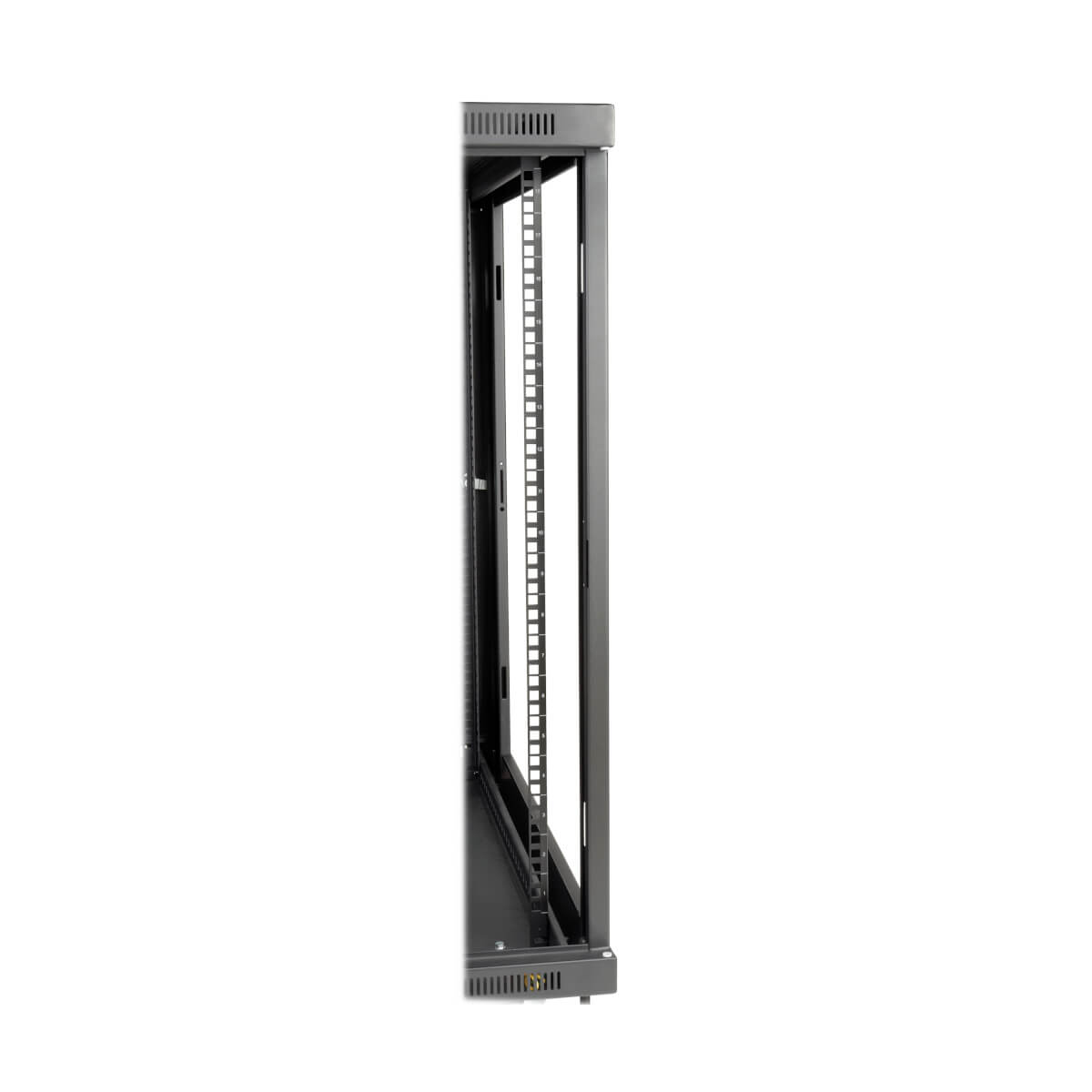

The SR18UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from three to 32.5 inches, ideal for standard server installation. The rails feature square mounting holes and are capable of supporting up to 1000 pounds (454 kilograms) of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.

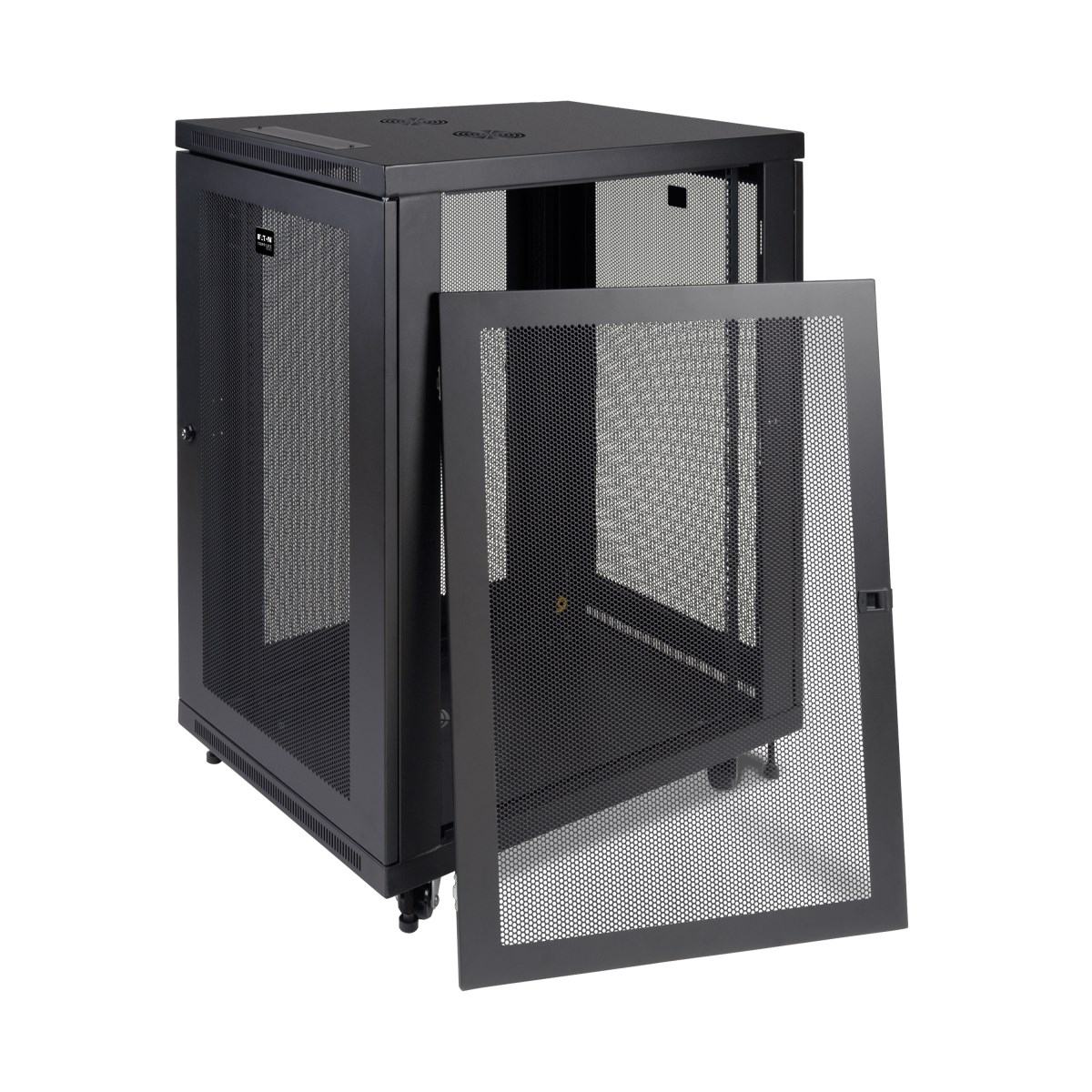

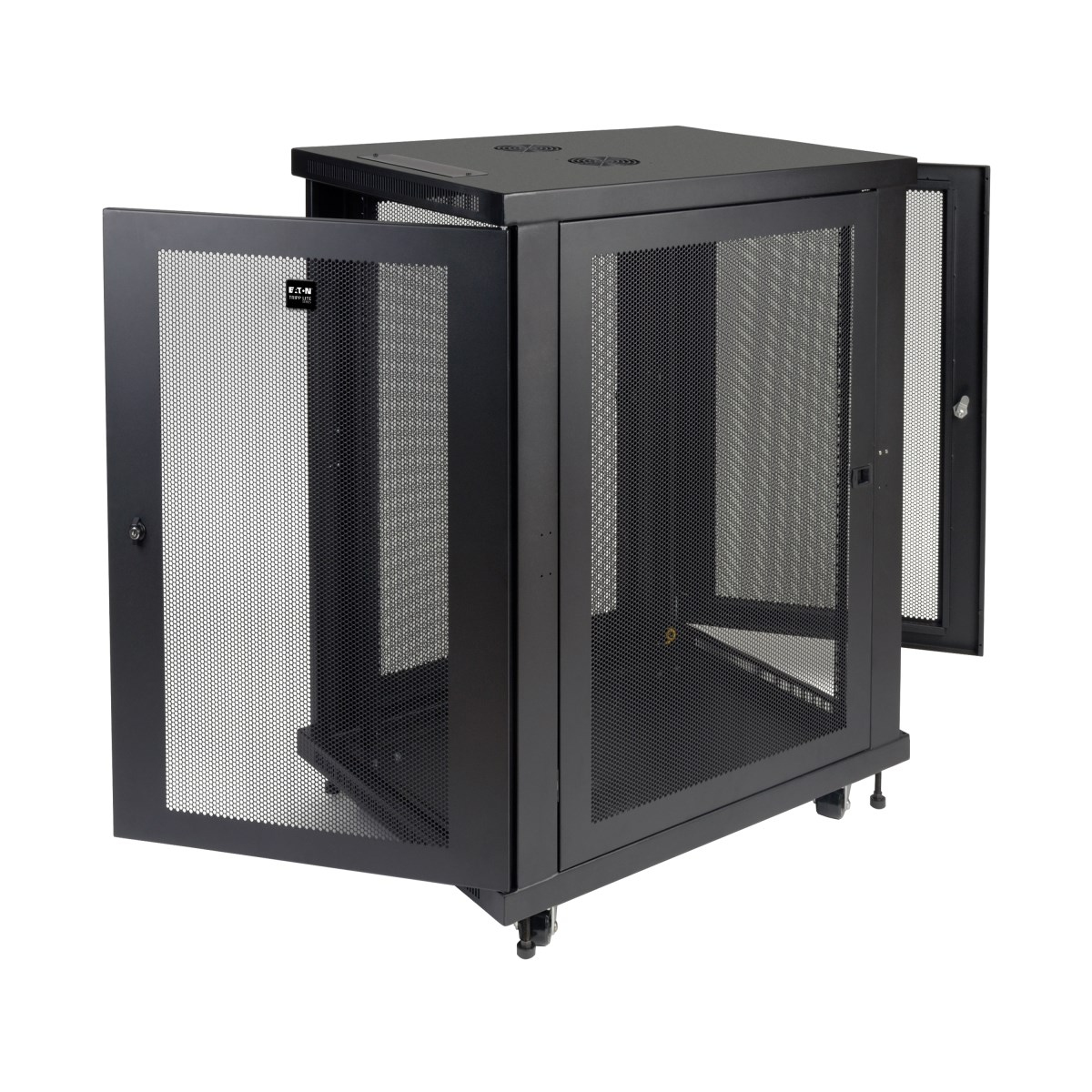

With locking, reversible front/rear doors and locking, removable side panels, the SR18UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.

The top and bottom panels of the SR18UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (including SRFANWM, sold separately). The top and bottom panels are also provided with ports for cable routing.

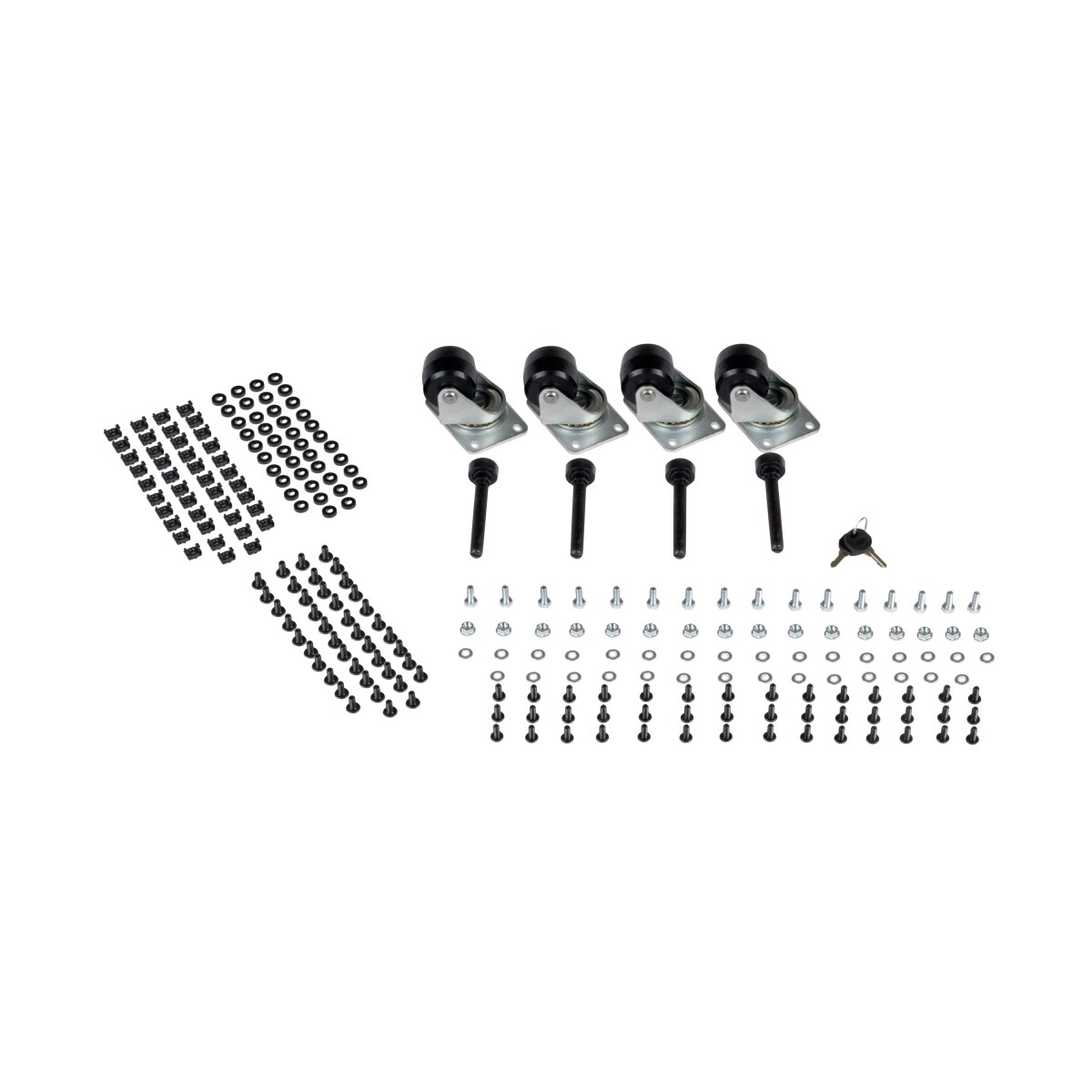

To simplify deployment, the SR18UB comes with an accessory caster kit consisting of four casters and all required installation hardware. With casters installed, the SR18UB can easily be maneuvered into to desired location, and then secured in place by adjusting the unit's levelers. Note: The casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

Specifications

Weight & dimensions
Package depth34" (863.6 mm)
Package width24" (609.6 mm)
Package height41" (1041.4 mm)
Package weight125 lbs (56.7 kg)
Width23.6" (599.9 mm)
Depth33.5" (850.9 mm)
Height35.6" (904.2 mm)
Weight104.9 lbs (47.6 kg)
Maximum weight capacity1000 lbs (453.6 kg)
Features
Rack capacity18U
TypeFreestanding rack
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationUL60950 EIA-310-E NOM RoHS
Packaging data
Package depth34" (863.6 mm)
Package width24" (609.6 mm)
Package height41" (1041.4 mm)
Package weight125 lbs (56.7 kg)
Technical details
Package width24" (609.6 mm)
Package height41" (1041.4 mm)
TypeFreestanding rack
Harmonized System (HS) code8517.79.0000
Rack capacity18U
Colour
Product colourBlack
Certificates
CertificationUL60950 EIA-310-E NOM RoHS
Logistics data
Master (outer) case width24" (609.6 mm)
Master (outer) case length34" (863.6 mm)
Master (outer) case height41" (1041.4 mm)
Master (outer) case gross weight125 lbs (56.7 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
