DVI over Cat5/6 Active Extender Kit, Transmitter/Receiver for Video, DVI-D Single Link, Up to 125 ft. (38 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5/6 ACT EXTENDERKIT VIDEO TRANS/RECB140-101X-U 812286 Register free see stock
Ingram Micro DVI OVER CAT5/6 ACTIVE EXTENDER 2U5255
TD Synnex DVI OVER CAT5/6 ACTIVE EXTENDER 125FT 4432643

Related Products

Description

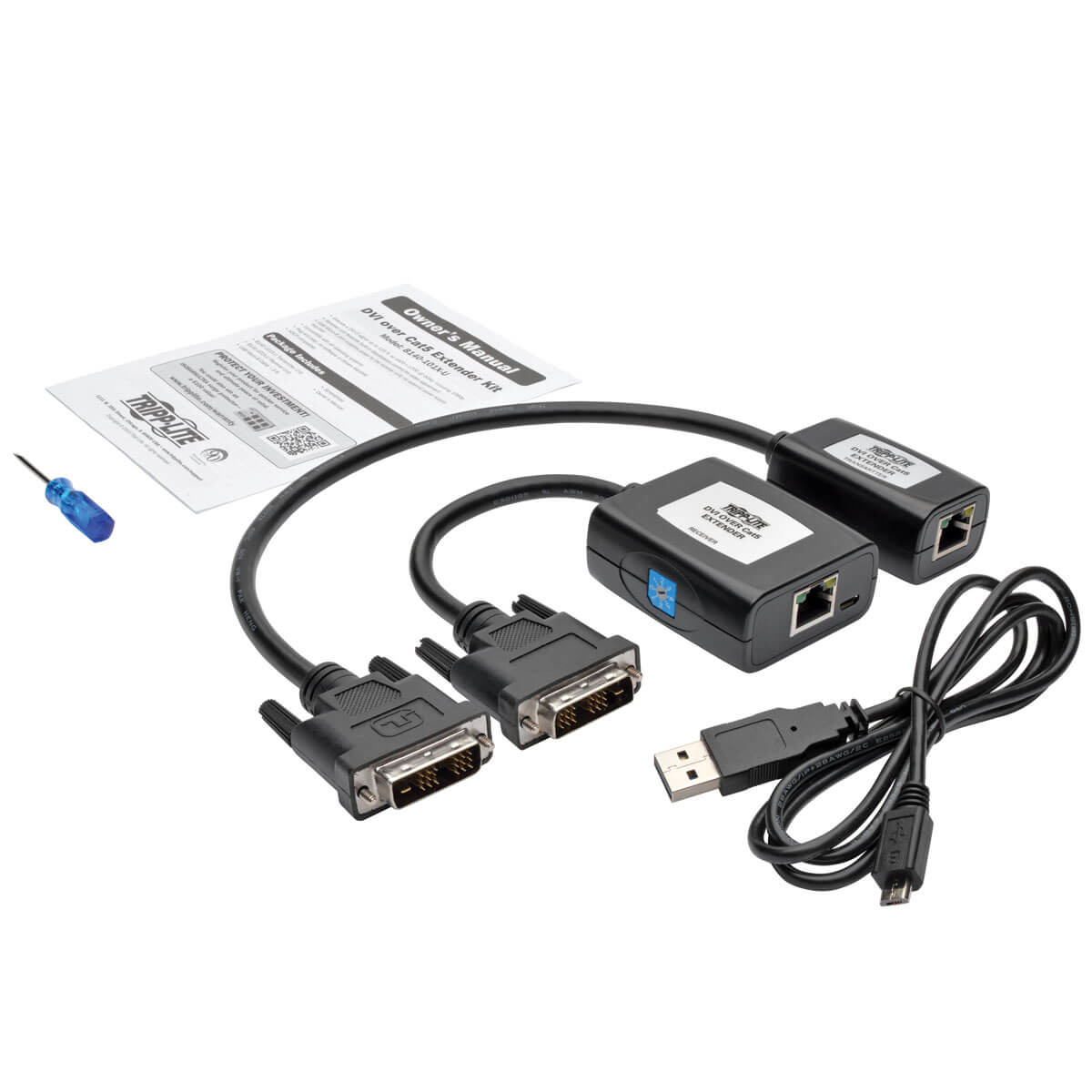

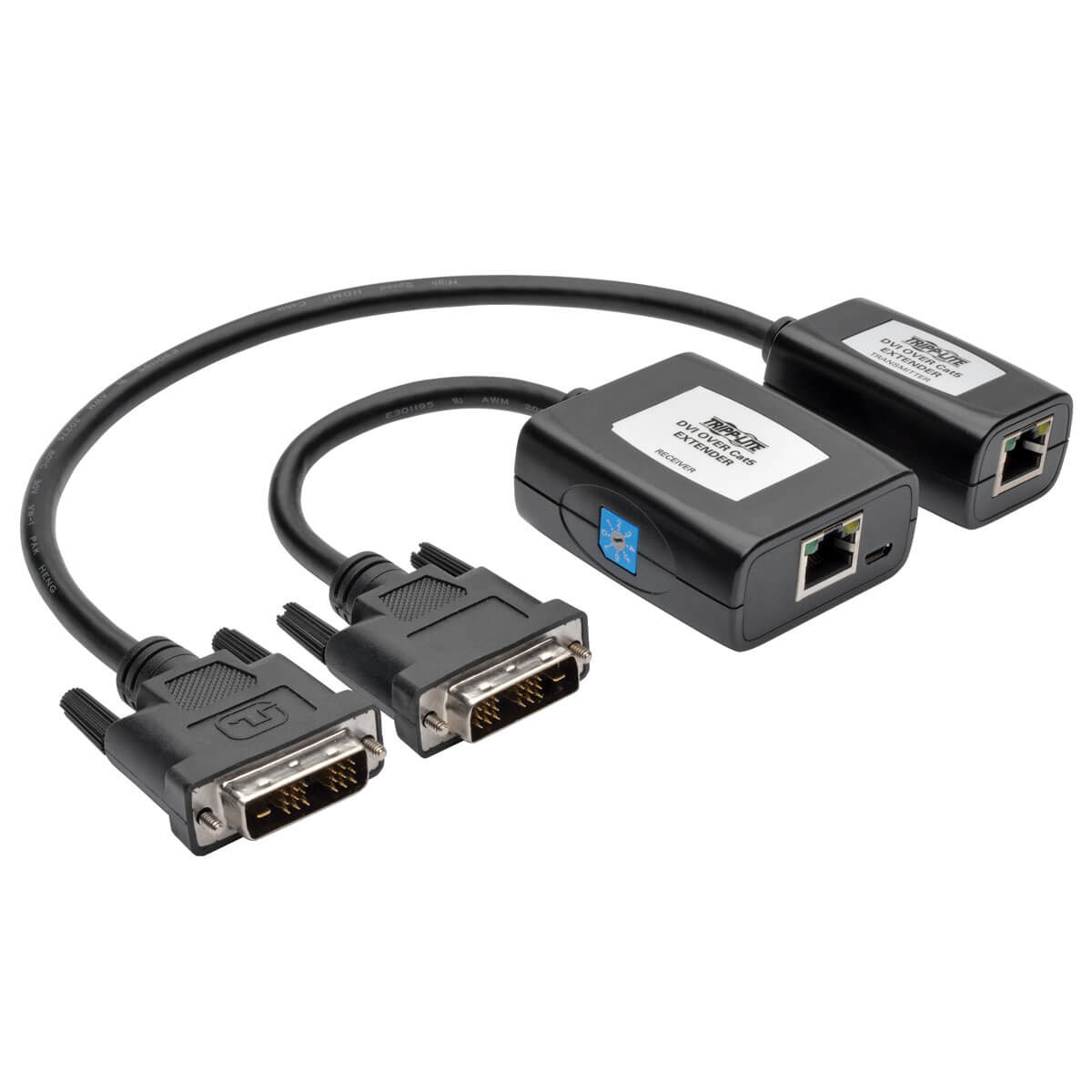

The B140-101X-U DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend a DVI-D signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

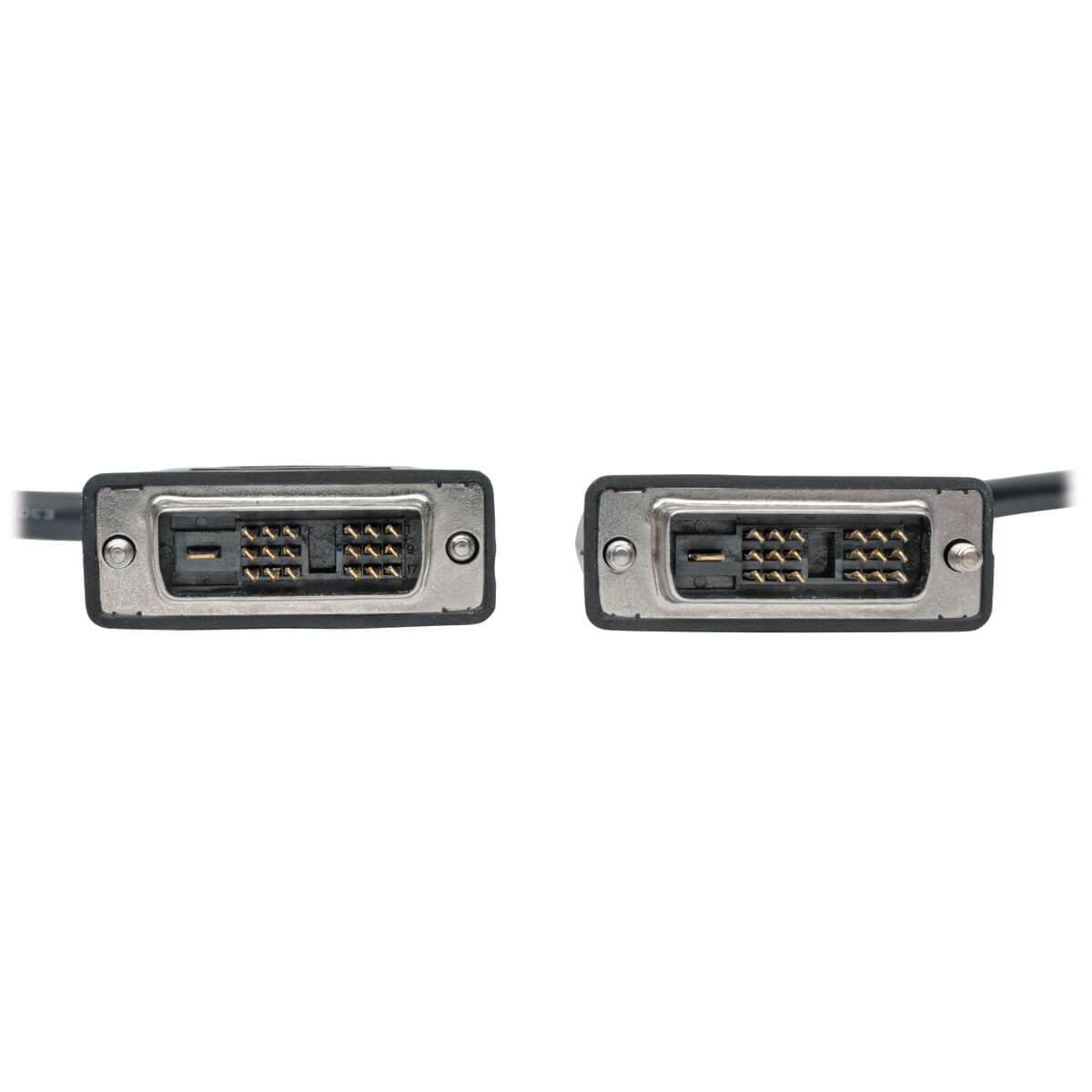

Each unit features a built-in DVI cable for connecting to your computer's DVI output port and the display's DVI input port. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). An included USB Micro-B cable connects the receiver and a USB port on the display or a USB wall charger to supply power to the unit.

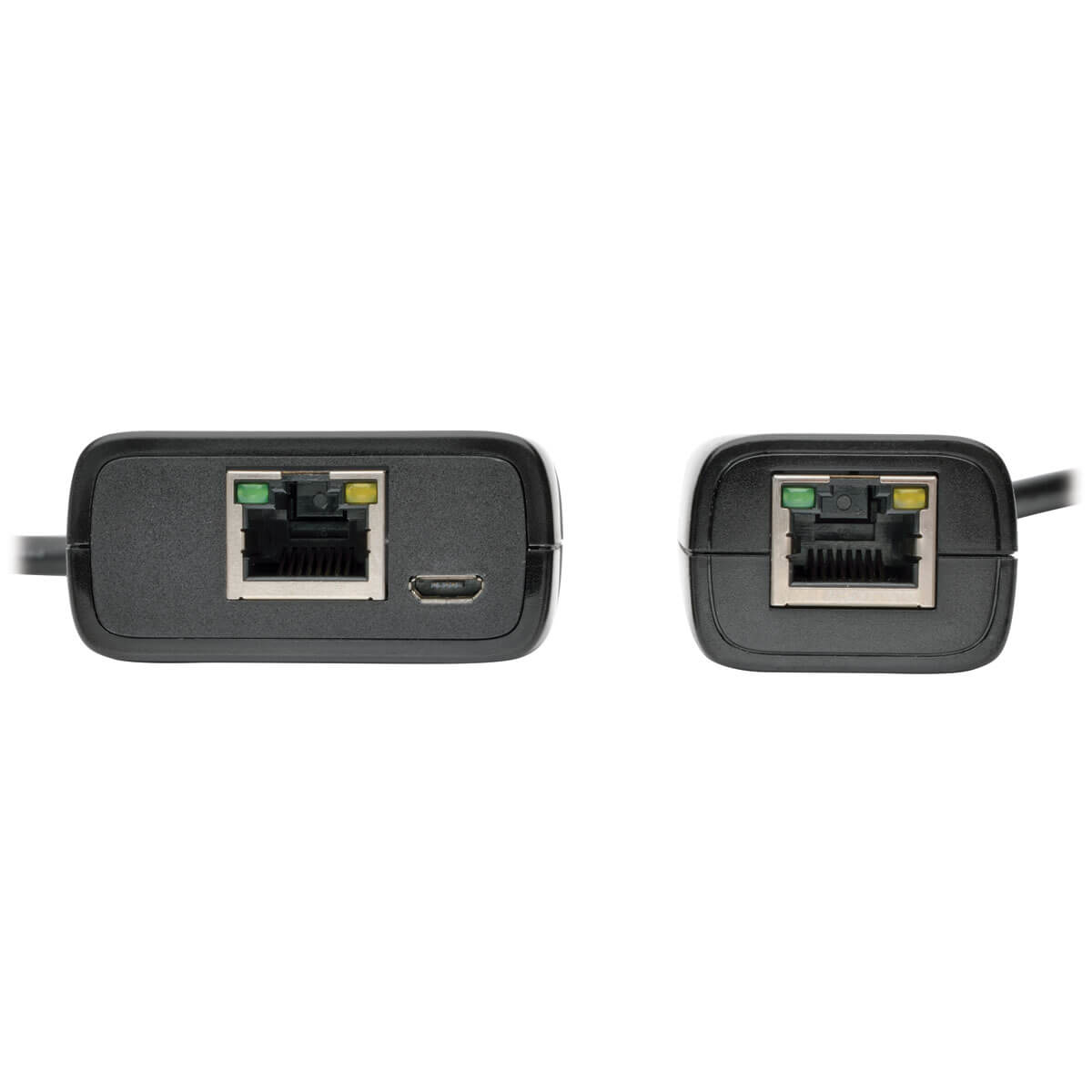

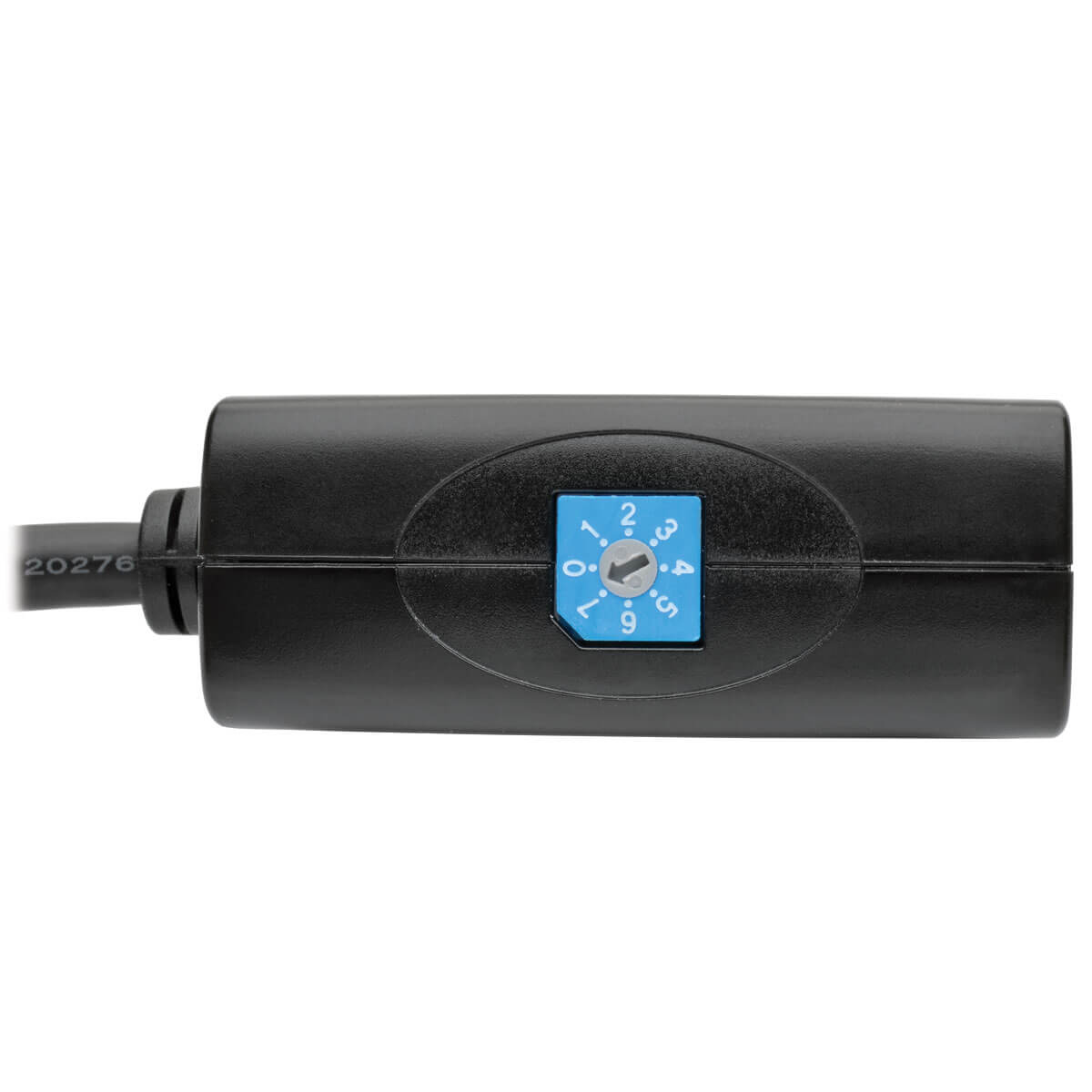

The HDCP-compatible B140-101X-U can extend a 1920 x 1200 (60 Hz) signal, including 1080p, up to 125 feet (38.1 meters). LEDs on the RJ45 ports indicate when the units are receiving power and a DVI signal from the source. Built-in equalization control lets you fine-tune the image on the remote display. Easy to set up with no software or drivers to install. Compatible with all operating systems. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specifications

Ports & interfaces
Video ports quantity2
Video port typeDVI
Ethernet LAN (RJ-45) ports2
Connector(s)DVI-D
Cable types supportedCat5e, Cat6
Ethernet LANYes
Features
LED indicatorsYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1200 pixels
HDCPYes
Supported video modes480i, 480p, 720p, 1080i, 1080p
Plug and PlayYes
Maximum operating distance1496.1" (38 m)
Product colourBlack
Country of originTaiwan
Network
Cable types supportedCat5e, Cat6
Ethernet LANYes
Packaging data
Package weight7.05 oz (200 g)
Package depth1.73" (43.9 mm)
Package width5.59" (142 mm)
Package height7.87" (199.9 mm)
Packaging content
ManualYes
Video
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1200 pixels
HDCPYes
Supported video modes480i, 480p, 720p, 1080i, 1080p
Colour
Product colourBlack
Indication
LED indicatorsYes
Technical details
Package width5.59" (142 mm)
Package height7.87" (199.9 mm)
Plug and PlayYes
Maximum operating distance1496.1" (38 m)
Weight & dimensions
Package weight7.05 oz (200 g)
Package depth1.73" (43.9 mm)
Package width5.59" (142 mm)
Package height7.87" (199.9 mm)
Logistics data
Master (outer) case width8.39" (213.1 mm)
Master (outer) case length6.02" (152.9 mm)
Master (outer) case height17.9" (455.9 mm)
Master (outer) case gross weight4.96 lbs (2.25 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332190236
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
