DVI over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, 1920x1080 at 60Hz, Up to 61 m (200-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5 EXTENDERTRANSMITTER AND RECEIVER 565162 Register free see stock
D&H DVI OVER CAT5 2PC EXTNDR TAA B140101X
Ingram Micro DVI OVER CAT5 2PC SUPER CR3377
TD Synnex DVI OVER CAT5/6 ACTIVE EXTENDER 200FT 2661873

Related Products

Description

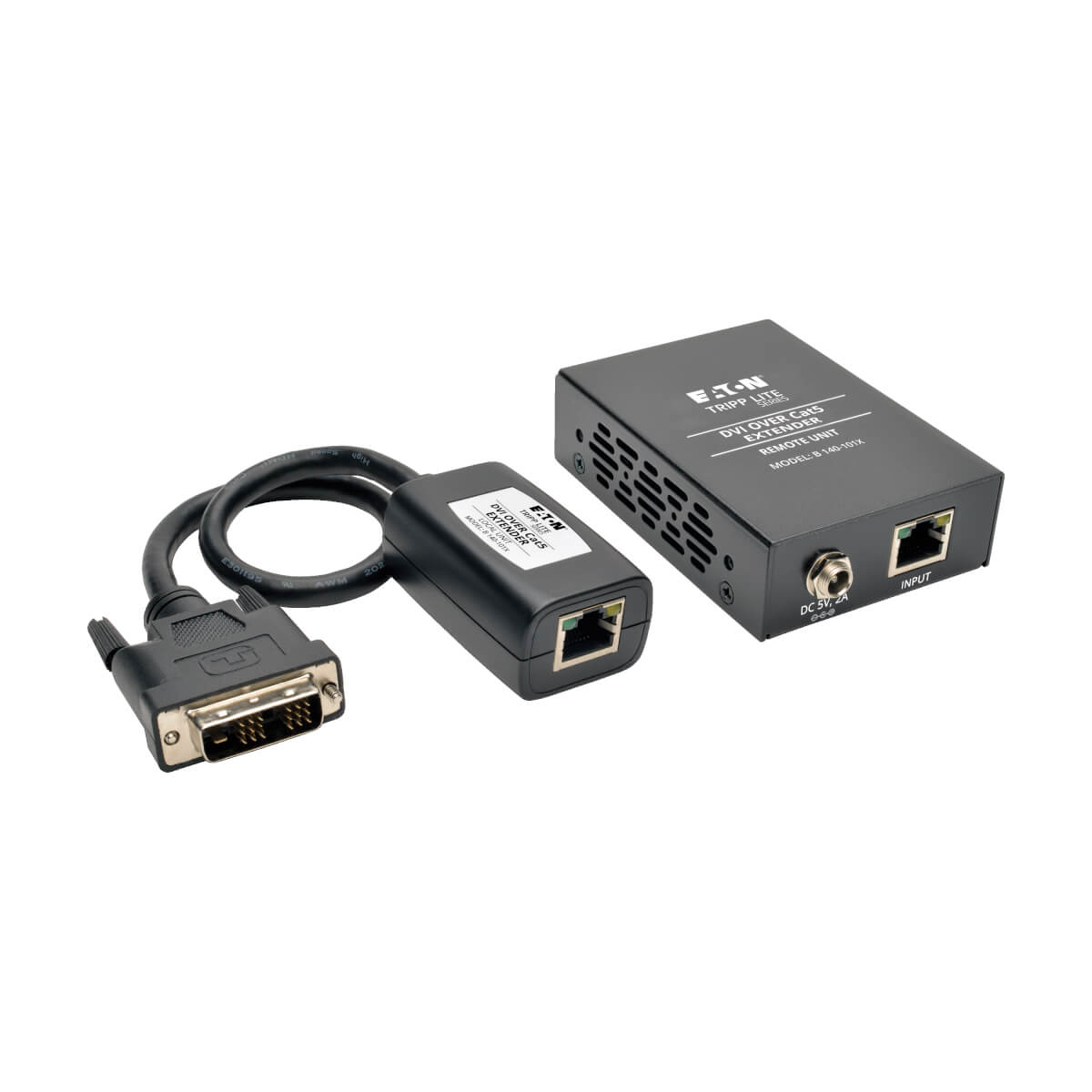

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 46 m (150-ft.) from the source,, or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- Extender kit comes with transmitter and receiver units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required
- Features a built-in Equalization control for adjustment of the video image
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections

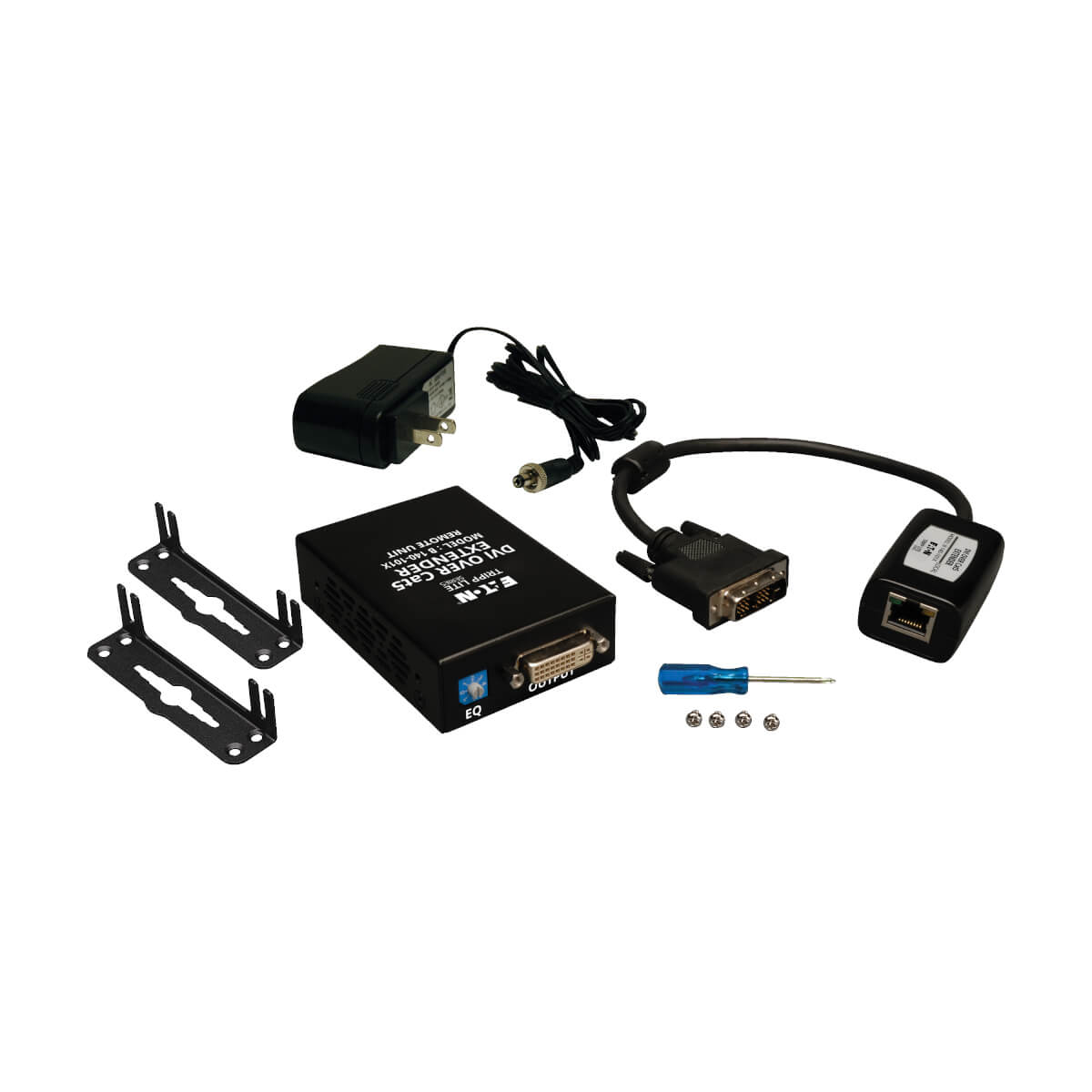

- B140-101X local transmitter unit

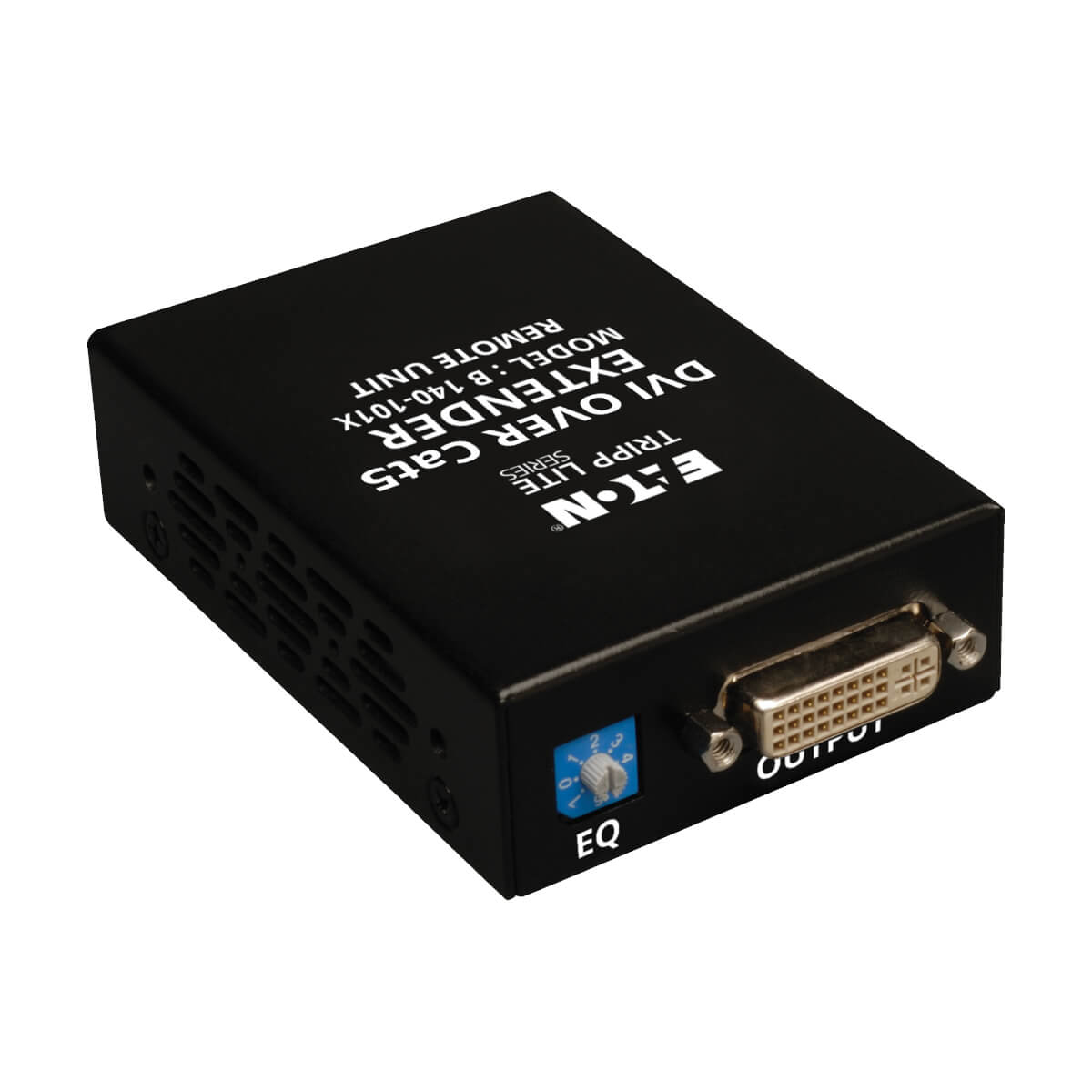

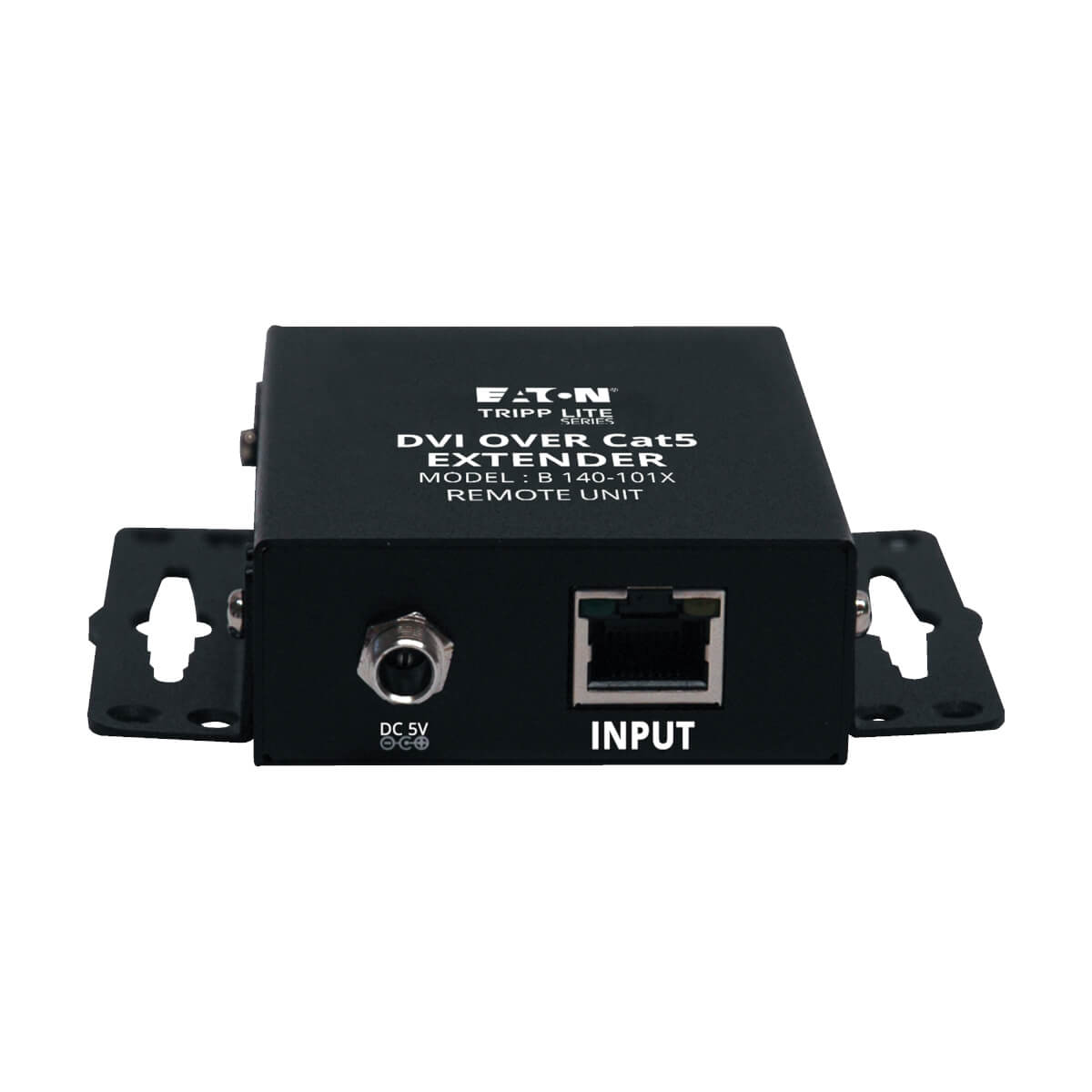

- B140-101X remote receiver unit
- Screwdriver (used for Equalization control)
- Mounting hardware for receiver unit
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Owner’s manual
- Extender kit comes with transmitter and receiver units
- Transmit a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Features a built-in Equalization control for adjustment of the video image
- Further expand the range and number of monitors by using a B140-110 repeater unit
- Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a channel)
- A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no software or drivers required

Specifications

Ports & interfaces
Video ports quantity1
Video port typeDVI
Ethernet LAN (RJ-45) ports1
Cable types supportedCat5e, Cat6
Ethernet LANYes
Features
LED indicatorsYes
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Power LEDYes
Plug and PlayYes
Product colourBlack
Country of originTaiwan
Network
Cable types supportedCat5e, Cat6
Ethernet LANYes
Power
Input current0.5 A
Output current2 A
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Packaging data
Package weight17.6 oz (500 g)
Package depth8.3" (210.8 mm)
Package width6.2" (157.5 mm)
Package height2" (50.8 mm)
Packaging content
ManualYes
Video
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Colour
Product colourBlack
Indication
LED indicatorsYes
Power LEDYes
Technical details
Package width6.2" (157.5 mm)
Package height2" (50.8 mm)
Plug and PlayYes
Weight & dimensions
Package weight17.6 oz (500 g)
Package depth8.3" (210.8 mm)
Package width6.2" (157.5 mm)
Package height2" (50.8 mm)
Logistics data
Master (outer) case width13.5" (342.9 mm)
Master (outer) case length22.6" (574 mm)
Master (outer) case height9.5" (241.3 mm)
Master (outer) case gross weight26.9 lbs (12.2 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332154092
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
