DVI over Cat5 Active Extender Wallplate Kit

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5 ACTIVE EXTENDERWALLPLATE KIT DVI-I RJ45 TAA 565166 Register free see stock

Related Products

Description

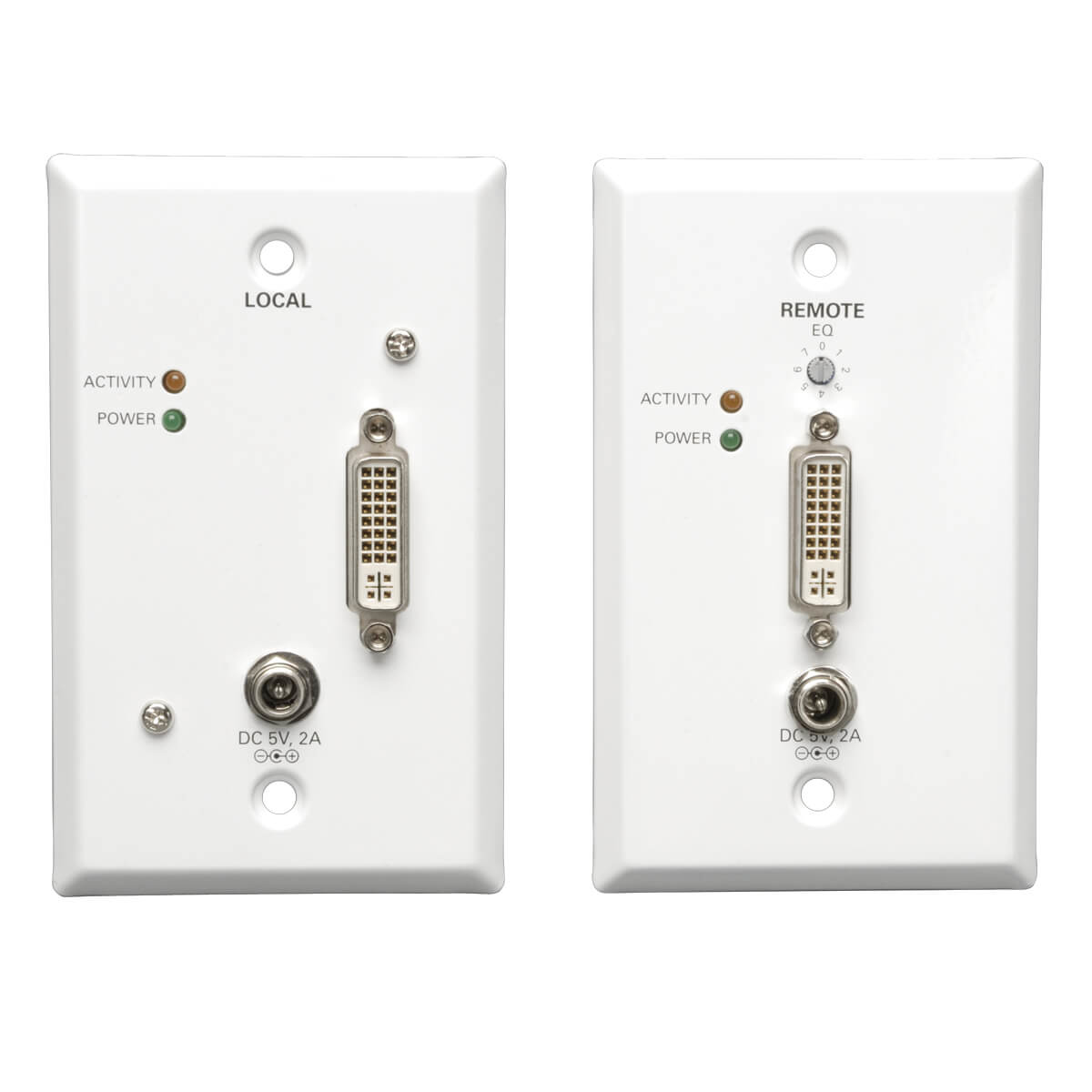

Tripp Lite's B140-1A1-WP DVI over Cat5 Active Extender Kit is perfect for those who need a wallplate solution that extends a DVI-D Single-Link signal up to 61 m (200-ft.) from the source. When using 24Awg, solid wire Cat5e/6 cabling (Tripp Lite N202-Series patch Cables), the B140-1A1-WP can extend a 1024 x 768 (60Hz) signal up to 61 m (200-ft.), or a 1920 x 1200 (60Hz) signal up to 46 m (150-ft.) Installation is quick and easy: Simply plug a pre-terminated RJ45 patch cable between the two wallplates and connect the wallplates to the source and monitor using standard DVI-D Single-Link cables (Tripp Lite P561-Series). The signal will be sent with perfect video quality with equalization control at the receiver end, which allows adjustment for the sharpest image. Wallplates mount in standard in-wall electrical boxes or surface mount boxes.

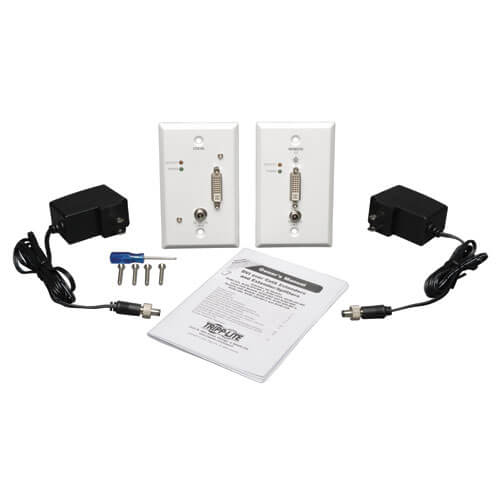

● 2 piece kit includes both local transmitter and remote receiver wallplates
● Extend a DVI-D Single-Link signal up to 61 m (200-ft.) at 1024 x 768 (60Hz), or up to 46 m (150-ft.) at 1920 x 1200 (60Hz), when using 24Awg, solid wire Cat56 cabling. (Tripp Lite N202 Series Patch Cables)
● Built in equalization control for the sharp display quality
● Easy RJ45 patch cable connections
● No software or drivers required
● HDCP and DDC compatible
● Compatible with all operating systems

Specifications

Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5, Cat5e, Cat6
Maximum transfer distance2400" (61 m)
Supported video modes1080p
Supported graphics resolutions1024 x 768 (XGA), 1920 x 1080 (HD 1080)
LED indicatorsYes
Product colourWhite
Ports & interfaces
DC-in jackYes
Power
External power adapterYes
Operating voltage5 V
Current2 A
Packaging data
Package depth8.4" (213.4 mm)
Package width6.2" (157.5 mm)
Package height2.2" (55.9 mm)
Package weight19 oz (540 g)
Technical details
Country of originTaiwan
Logistics data
Master (outer) case width13.6" (345.4 mm)
Master (outer) case length22.6" (574 mm)
Master (outer) case height9.4" (238.8 mm)
Master (outer) case gross weight27.3 lbs (12.4 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332168099
