Tripp Lite B140-1P0 video splitter DVI

  • Brand: Tripp Lite
  • Category:
  • SKU: B140-1P0
  • EAN: 0037332156655 0373321566556
DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5 PASSIVEEXTENDER REMOTE UNIT TAA 565167 Register free see stock
Ingram Micro DVI OVER CAT5 PASSIVE EXTENDER DP8653
TD Synnex DVI CAT5/6 PASSIVE VIDEO EXTENDER 100FT 2788231

Related Products

Description

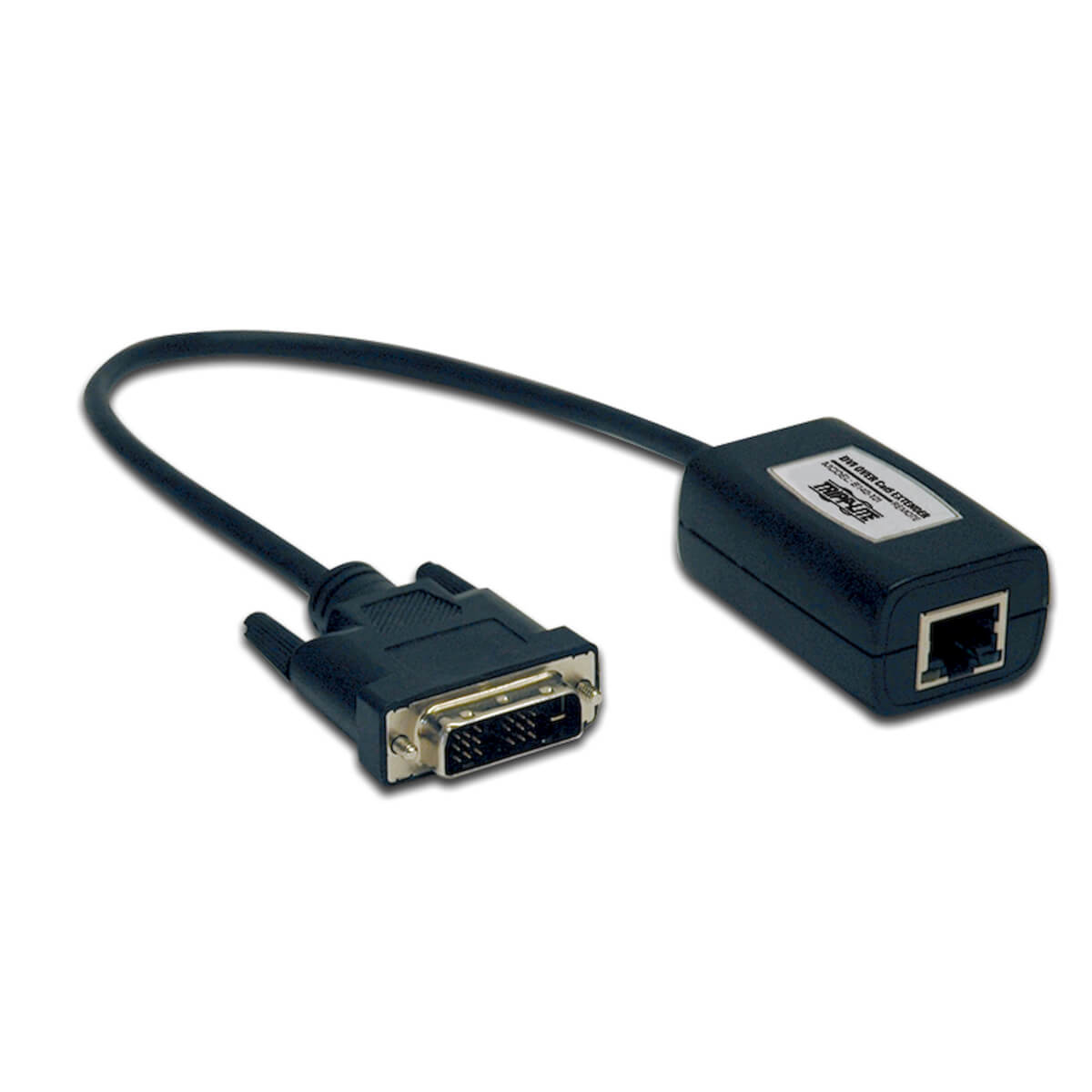

The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units. It transmits a DVI-D Single-Link signal up to 100 feet (30.5 meters) away using a single Cat5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24 AWG Solid Wire Cat5e/6 cable (N202-Series). The B140-1P0 is compatible with all operating systems and is plug and play with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 at 60 Hz signal can be extended up to 50 feet (15.2 meters) from the source or a 1024 x 768 at 60 Hz signal up to 100 feet (30.5 meters)

Specifications

Ports & interfaces
Video ports quantity1
Video port typeDVI
Ethernet LAN (RJ-45) ports1
Cable types supportedCat5e, Cat6
Ethernet LANYes
Features
Maximum refresh rate60 Hz
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
Supported video modes480i, 480p, 720p, 1080i, 1080p
Product colourBlack
CertificationTAA, RoHS
Country of originTaiwan
Network
Cable types supportedCat5e, Cat6
Ethernet LANYes
Packaging data
Package weight9.52 oz (270 g)
Package depth7.2" (182.9 mm)
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Packaging content
ManualYes
Video
Maximum refresh rate60 Hz
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
Supported video modes480i, 480p, 720p, 1080i, 1080p
Colour
Product colourBlack
Certificates
CertificationTAA, RoHS
Technical details
Connector 1DVI
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Weight & dimensions
Package weight9.52 oz (270 g)
Package depth7.2" (182.9 mm)
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Logistics data
Master (outer) case width14.5" (368 mm)
Master (outer) case length13" (329.9 mm)
Master (outer) case height10.9" (277.1 mm)
Master (outer) case gross weight13 lbs (5.9 kg)
Products per master (outer) case40 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332156652
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
