Tripp Lite B140-1A0 video splitter DVI

Tripp Lite B140-1A0 video splitter DVI

  • Brand: Tripp Lite
  • Category:
  • SKU: B140-1A0
  • EAN: 0037332156631 0373321566310 74 ...1566310 7426901244214more

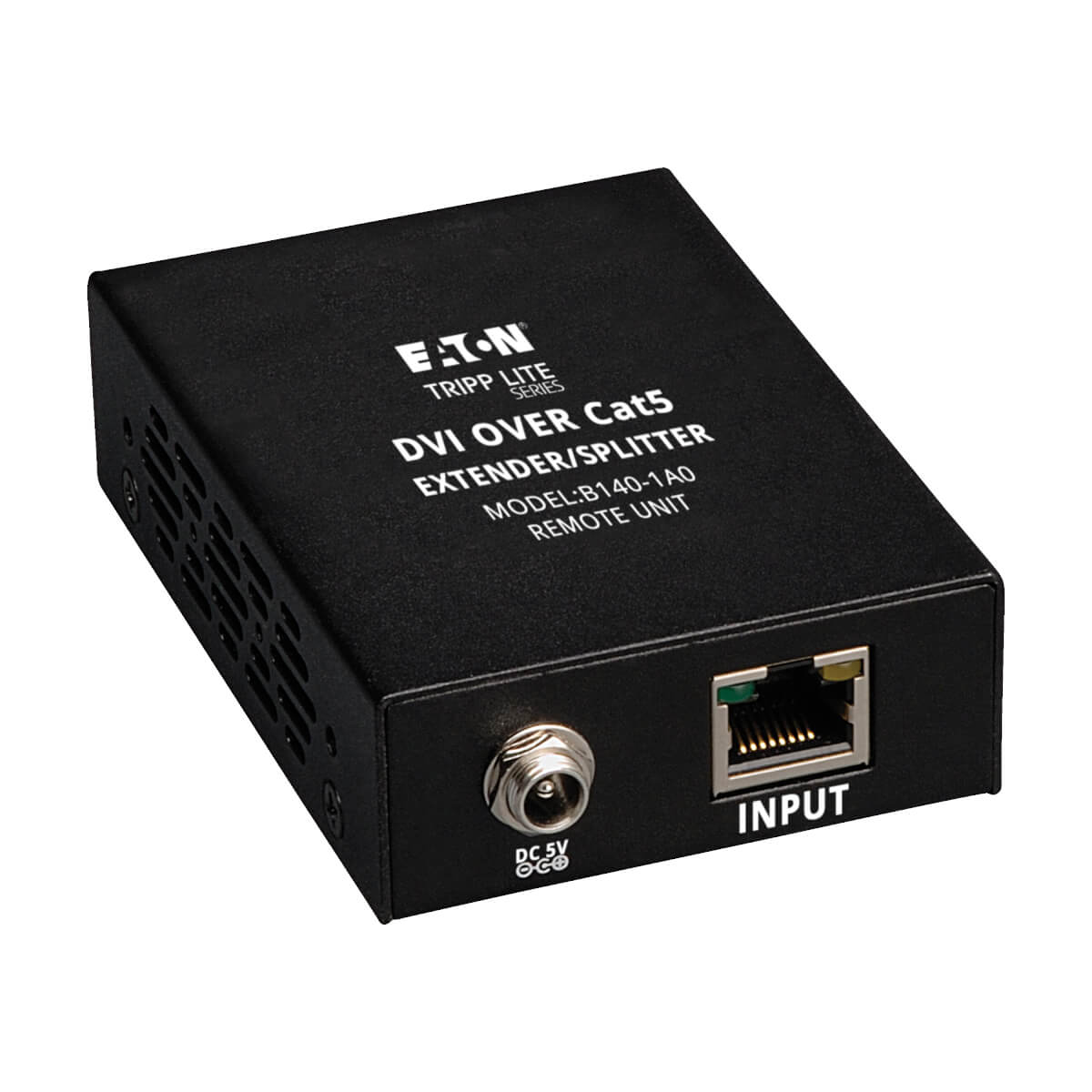

DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, 1920x1080 at 60Hz, Up to 61 m (200-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5 ACTIVE EXTENDERRECEIVER REMOTE UNIT TAA 565164 Register free see stock
Arlington Industries TAA DVI OVER CAT5/6 EXTENDER 200' TRPB140-1A0
ASI Corp Tripp Lite AC B140-1A0 DVI over Cat5 6 Active Extender DVI-I Dual Link 200ft 244609
D&H DVI Over Cat5 Active Extender B1401A0
Ingram Micro DVI CAT5 / CAT6 ACTIVE EXTENDER DV6735
TD Synnex DVI CAT5/6 ACTIVE EXTENDER RECEIVER 60HZ 2796475

Related Products

Description

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 46 m (150-ft.) from the source, or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- For use with B140-002 or B140-004 extender/splitter transmitter units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required

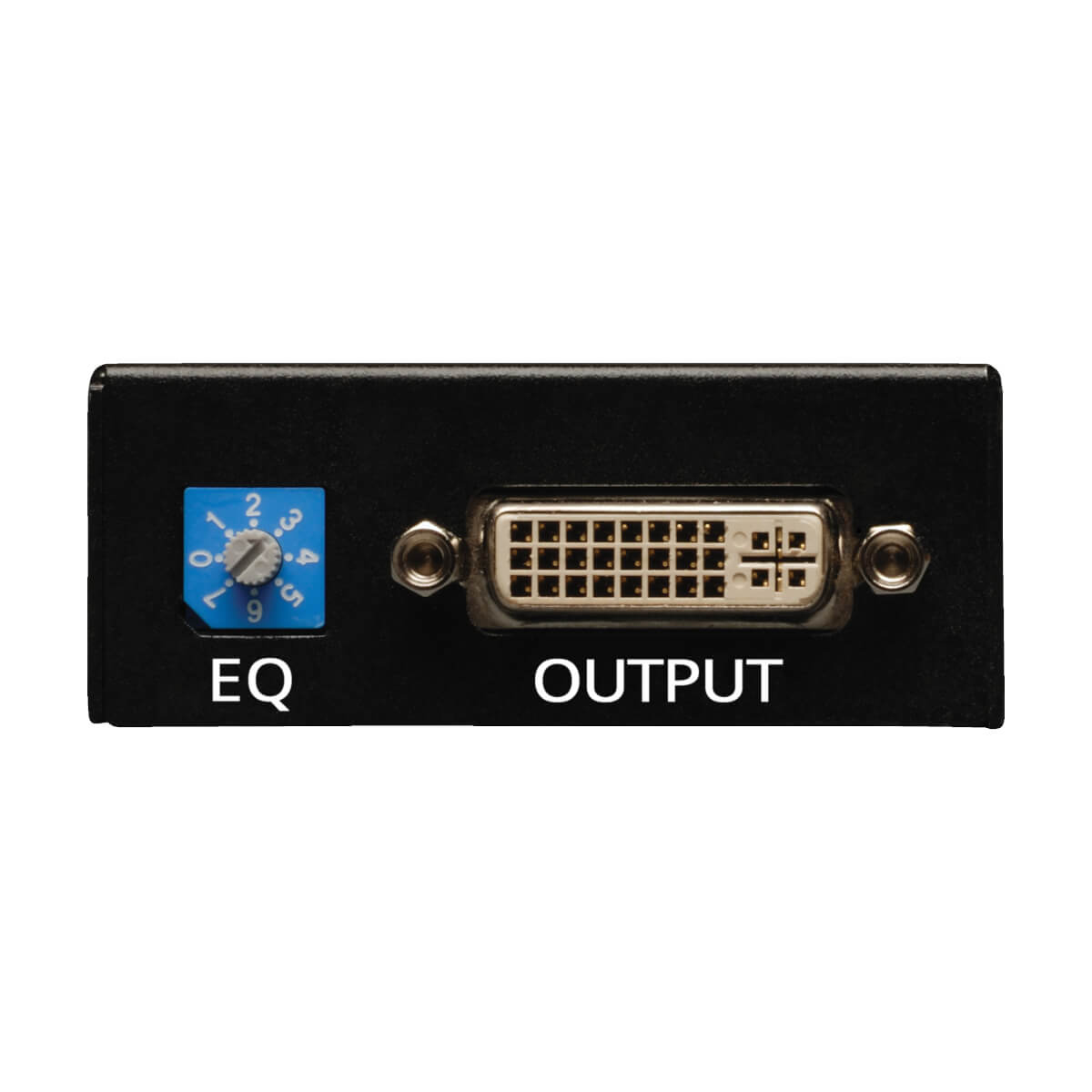

- Features a built-in Equalization control for adjustment of the video image
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections

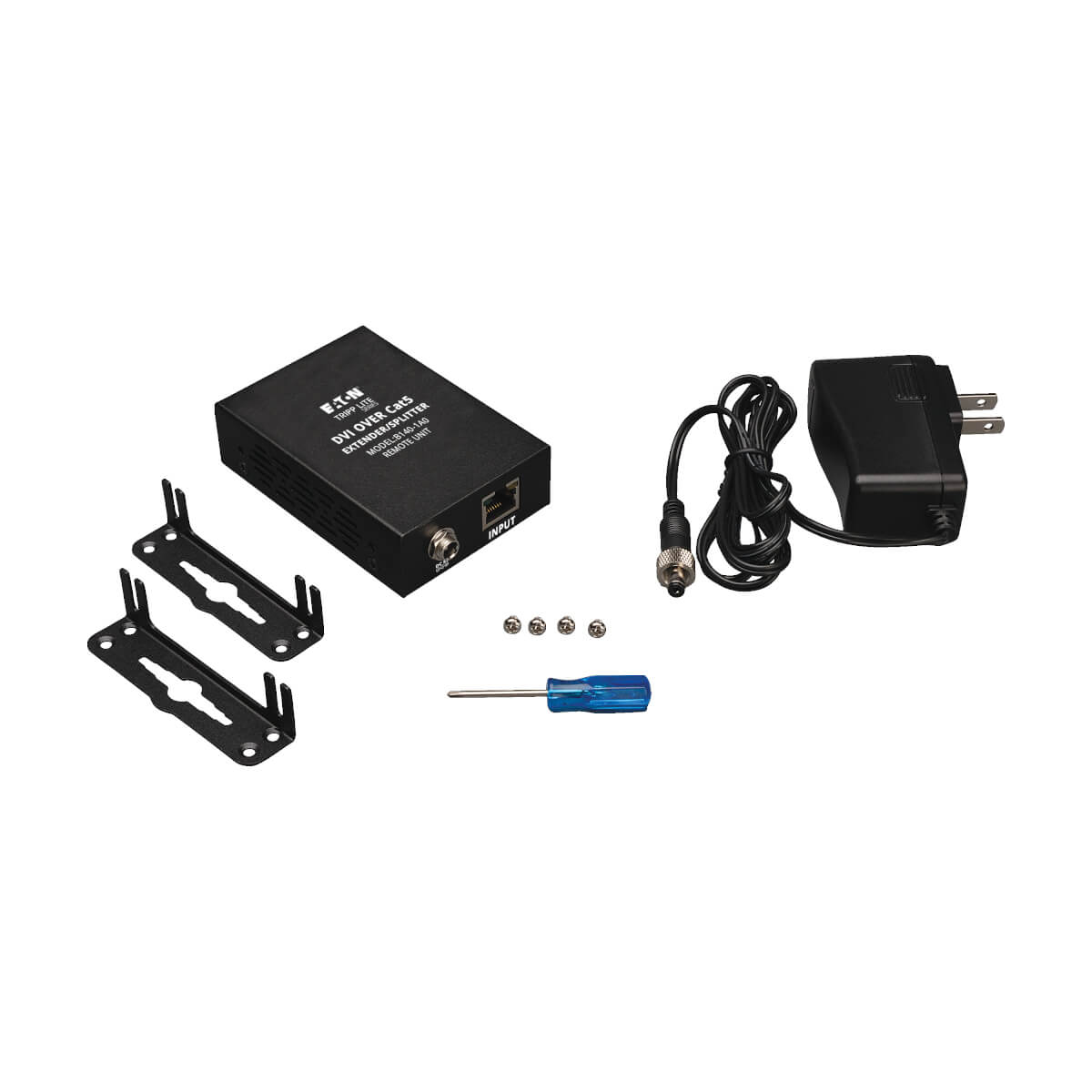

- B140-1A0 DVI over Cat5 Active Extender Remote Unit
- Mounting hardware
- Screwdriver for adjustment of Equalization
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Owner's Manual
- Transmit a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable
- For use with B140-002 or B140-004 extender/splitter transmitter units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Features a built-in Equalization control for adjustment of the video image
- Further expand the range and number of monitors by using a B140-110 repeater unit
- Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel)
- A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no software or drivers required

Specifications

Ports & interfaces
Video ports quantity1
Video port typeDVI
Ethernet LAN (RJ-45) ports1
Ethernet LANYes
Features
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Power LEDYes
Product colourBlack
CertificationTAA
Country of originTaiwan
Network
Ethernet LANYes
Power
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Packaging data
Package weight17.3 oz (490 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Packaging content
ManualYes
Video
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Colour
Product colourBlack
Certificates
CertificationTAA
Indication
Power LEDYes
Technical details
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Weight & dimensions
Package weight17.3 oz (490 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Logistics data
Master (outer) case width23.1" (586.7 mm)
Master (outer) case length13.7" (348 mm)
Master (outer) case height8.7" (221 mm)
Master (outer) case gross weight24.9 lbs (11.3 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332156638
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
