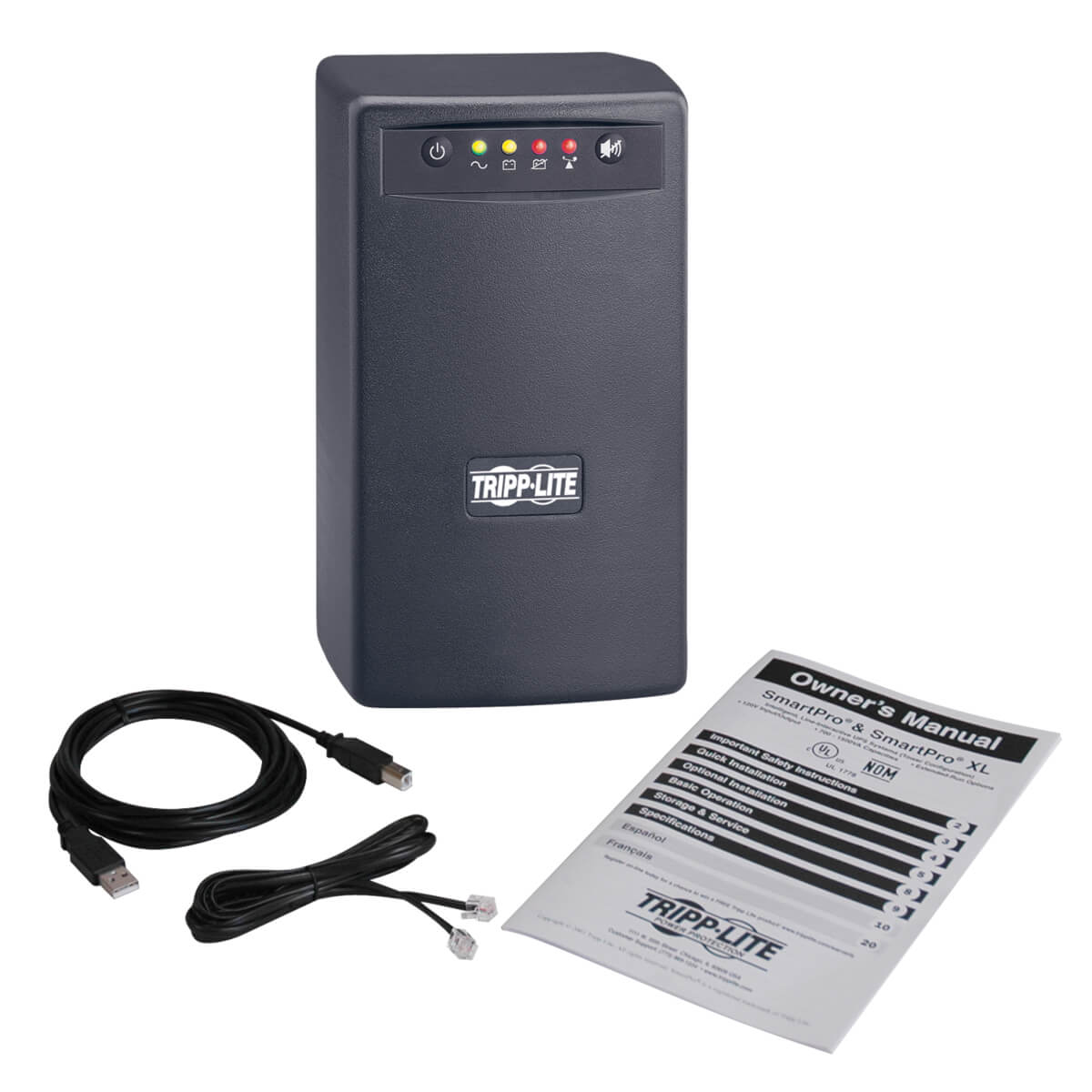

Tripp Lite SMART550USB uninterruptible power supply (UPS) Line-Interactive 0.55 kVA 300 W 6 AC outlet(s)

Tripp Lite SMART550USB uninterruptible power supply (UPS) Line-Interactive 0.55 kVA 300 W 6 AC outlet(s)

SmartPro 120V 550VA 300W Line-Interactive UPS, Tower, USB, Tel/DSL Protection

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, UPS SMART 550VA USB 6 OUT LI SMART550USB Register free see stock
D&H 550VA 300W UPS SMART550USB
Ingram Micro UPS SMART 550VA 300W USB 120V 372056
TD Synnex SMART USB 550VA TOWER LINE-INTERACTIVE 120V UPS WITH USB PORT 947135

Related Products

Description

Tripp Lite's SMART550USB line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive stealth black tower configuration. Includes 3 battery supported outlets for computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert software available via free download. Built-in single line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and overload status. 550VA/300 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.6 minutes battery runtime with a full load of 550VA/300 watts and 14.8 minutes with a half load of 275VA/150 watts. Supports battery replacement via built-in access panel. $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- SMART550USB line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL modem line surge suppression
- Supports entry level PC systems for up to 30 minutes during power failures to enable a safe system shutdown
- Supports a max load of 550VA/300 watts for 4.6 minutes and a half load of 275VA/150 watts for 14.8 minutes
- Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 89 volts without using battery power

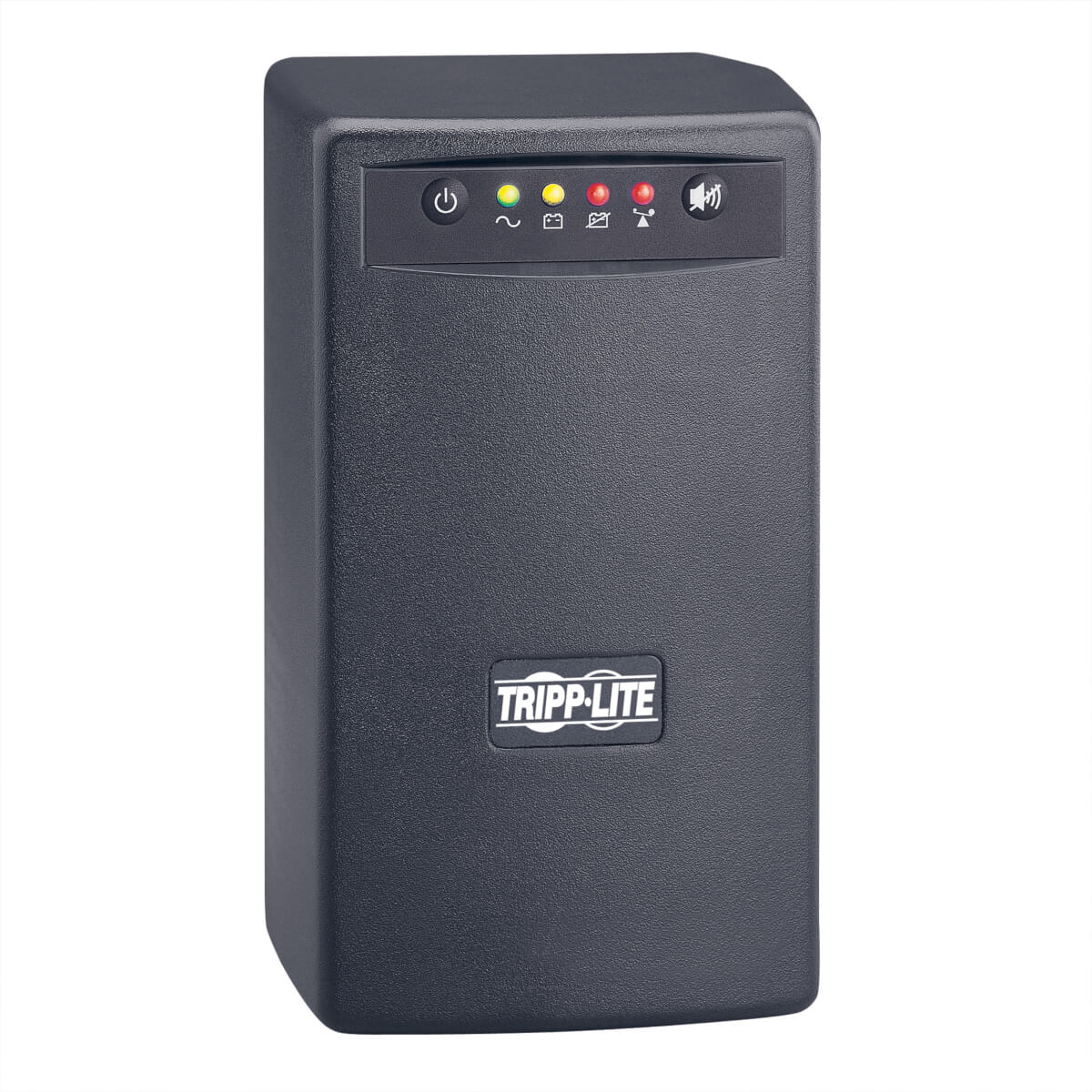

- Attractive stealth black tower configuration

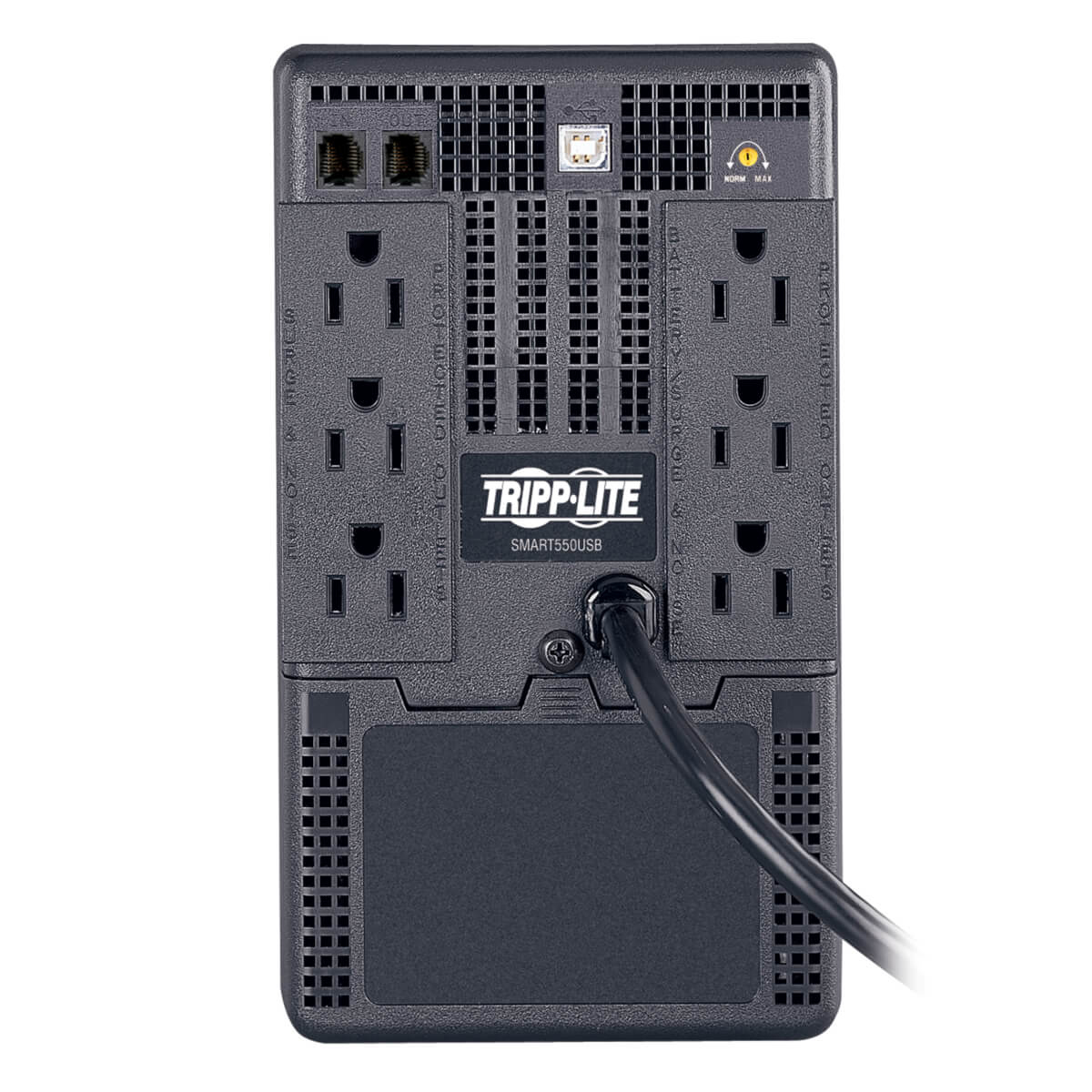

- Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord (all NEMA 5-15)
- USB port enables unattended shutdown without data loss during extended power failures, includes USB cable
- PowerAlert software available via free download
- Built-in RJ11 phone suppression jacks protect modem, fax machine or other peripheral with a dialup or DSL line phone connection
- Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
- 550VA/300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
- Supports battery replacement via built-in access panel
- Compatible with 120V/60Hz applications for USA, Canada, Mexico and more
- $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Specifications

Power
Output voltage regulation+/- 5%
Output power300 W
Input operation voltage (min)89 V
Input operation voltage (max)139 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Efficiency94%
Output power capacity0.55 kVA
Input frequency60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Modem (RJ-11) ports2
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresTelephone
Power protection featuresUnder voltage
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation+/- 5%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power300 W
Input operation voltage (min)89 V
Input operation voltage (max)139 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Efficiency94%
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresTelephone
Power protection featuresUnder voltage
Audible alarm(s)Yes
Output power capacity0.55 kVA
Input frequency60 Hz
Battery
Battery recharge time4.2 h
Typical backup time at half load14.8 min
Typical backup time at full load4.6 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationUL1778, CSA, NOM, FCC
Cable length70.9" (1.8 m)
Housing materialPolyvinyl chloride (PVC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Sustainability certificatesRoHS
Weight & dimensions
Package width8.1" (205.7 mm)
Package depth9.6" (243.8 mm)
Package height12.2" (309.9 mm)
Weight13.5 lbs (6.12 kg)
Width5" (127 mm)
Package weight13.5 lbs (6.12 kg)
Height8.5" (215.9 mm)
Depth6.5" (165.1 mm)
Packaging data
Package width8.1" (205.7 mm)
Package depth9.6" (243.8 mm)
Package height12.2" (309.9 mm)
Package weight13.5 lbs (6.12 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width8.1" (205.7 mm)
Master (outer) case length9.6" (243.8 mm)
Master (outer) case height12.2" (309.9 mm)
Master (outer) case gross weight13.5 lbs (6.12 kg)
Certificates
CertificationUL1778, CSA, NOM, FCC
Other features
Nominal output voltage120 V
Nominal input voltage120 V
Weight (imperial)14.4 lbs
Non-operating relative humidity (non-condensing)0 - 95%
