Tripp Lite SMART500RT1UTAA uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 6 AC outlet(s)

Tripp Lite SMART500RT1UTAA uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 6 AC outlet(s)

TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS, 1U Rack/Tower, Network Card Options, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

TAA-COMPLIANT SMARTPRO 120V500VA 300W LINE-INTERACTIVEUPS SNMP, WEBCARD

 641259 Register free see stock
ASI Corp

UPS SMART500RT1UTAA 1U SmartPro 120V 500VA 300W Rack Tower TAA RTL

 173793

Related Products

Description

Tripp Lite's SMART500RT1UTAA intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts as low as 90V. 500VA/300 watt power handling capability is compatible with networking, telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup.

Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.

- Federal Trade Agreements Act / TAA compliant for GSA schedule purchases
- Tripp Lite SMART500RT1UTAA .5 kVA / 500VA / 300 watt line interactive UPS
- 1U rack / tower compatible form factor
- NEMA 5-15P input connection; 7 NEMA 5-15R output receptacles
- Installed depth of only 11.8 in / 29.8 cm
- Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
- Maintains regulated 120V nominal output during brownouts as low as 90V

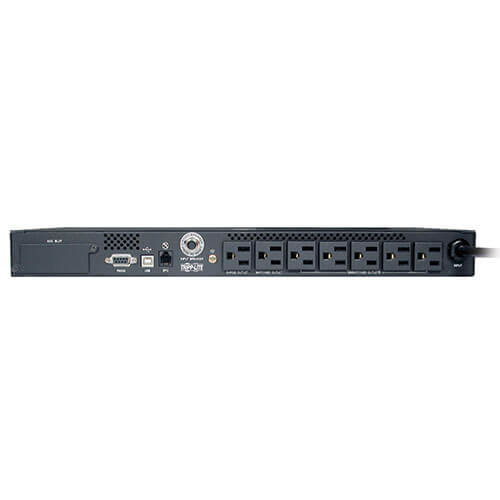

- Includes 6 UPS-supported outlets and 1 surge-only outlet
- One of the UPS supported outlets is switched for remote load shedding or rebooting of an individual device
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- Supports detailed monitoring of equipment load levels,self-test data, and utility power condition via built-in RS-232 and USB interfaces
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- Supports Tripp Lite's WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW)
- Emergency Power Off (EPO) interface with cable

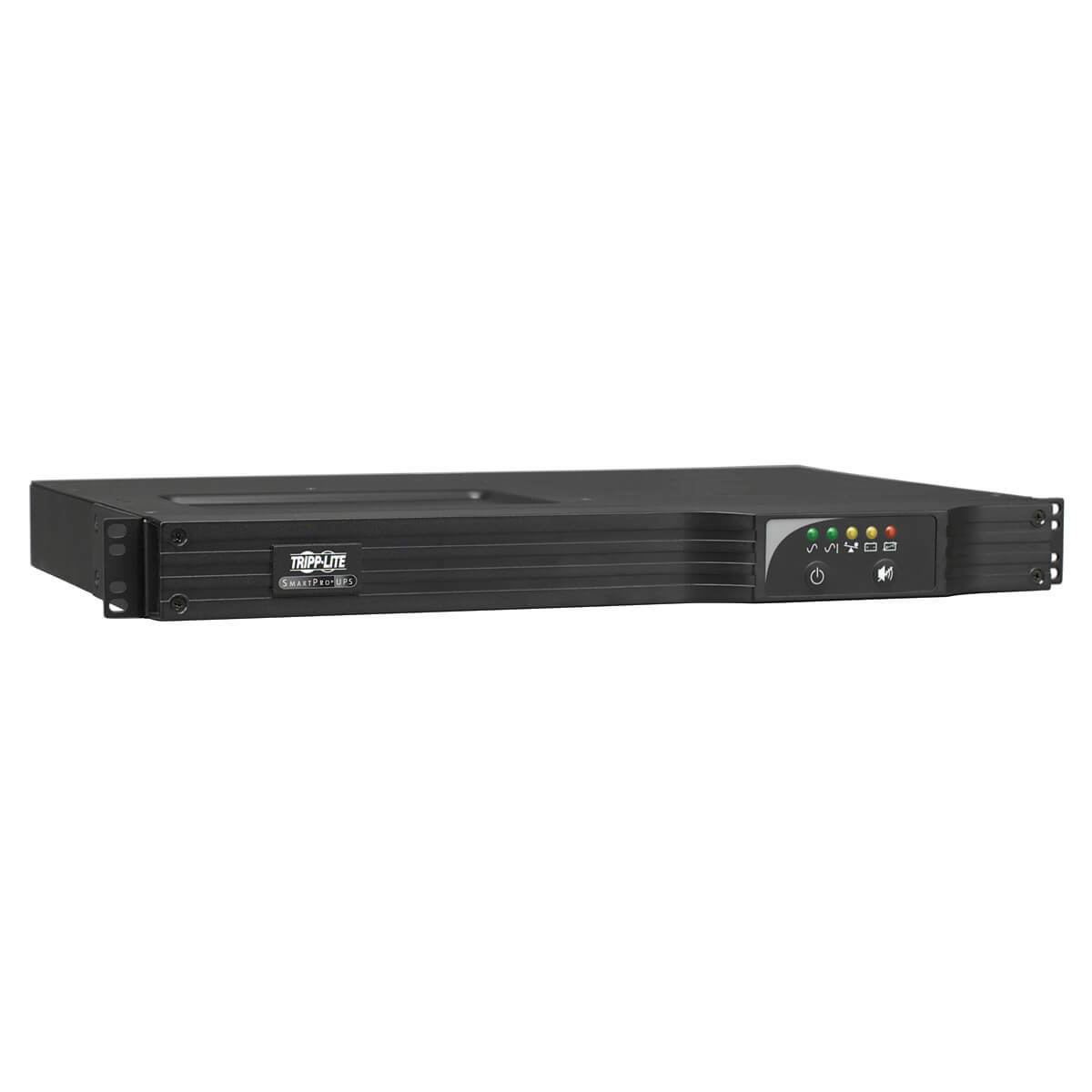

- Multi-function audible alarms and set of 5 front panel LEDs
- Network-grade AC surge suppression
- Field-replaceable, hot-swappable internal UPS batteries

Package Includes
- SMART500RT1UTAA UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- Instruction manual

Specifications

Power
Output voltage regulation-15, +13%
Output power300 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating567 J
Maximum current15 A
Efficiency96%
Emergency Power Off (EPO)Yes
Power factor0.6
Output power capacity0.5 kVA
Efficiency (On-line mode)13%
Input frequency60 Hz
Ports & interfaces
Cable length120.1" (3.05 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5-15R, NEMA 5–15P
Power plugNEMA 5-15R
USB 2.0 ports quantity1
Serial ports quantity1
Modem (RJ-11) ports1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
LED indicatorsYes
Power protection featuresUnder voltage
Audible alarm(s)Yes
Features
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-15, +13%
Automatic Voltage Regulation (AVR)Yes
Output power300 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating567 J
Maximum current15 A
Efficiency96%
Emergency Power Off (EPO)Yes
Power protection featuresUnder voltage
Power factor0.6
Audible alarm(s)Yes
Output power capacity0.5 kVA
Efficiency (On-line mode)13%
Input frequency60 Hz
Battery
Battery recharge time16 h
Typical backup time at half load14.6 min
Typical backup time at full load3.2 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity1U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
CertificationTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant
Cable length120.1" (3.05 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Certificates
CertificationTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant
Compliance certificatesRoHS
Packaging content
ManualYes
Weight & dimensions
Package width4.8" (121.9 mm)
Package depth22.1" (561.3 mm)
Package height15.4" (391.2 mm)
Weight17.6 lbs (7.98 kg)
Width17.3" (439.9 mm)
Package weight20.9 lbs (9.48 kg)
Height1.73" (43.9 mm)
Depth11.3" (286 mm)
Packaging data
ManualYes
Package width4.8" (121.9 mm)
Package depth22.1" (561.3 mm)
Package height15.4" (391.2 mm)
Package weight20.9 lbs (9.48 kg)
Logistics data
Country of originTaiwan
Products per master (outer) case2 pc(s)
Master (outer) case width22.8" (579.1 mm)
Master (outer) case length20" (508 mm)
Master (outer) case height16.3" (414 mm)
Master (outer) case gross weight41.9 lbs (19 kg)
Master (outer) case GTIN (EAN/UPC)10037332204131
