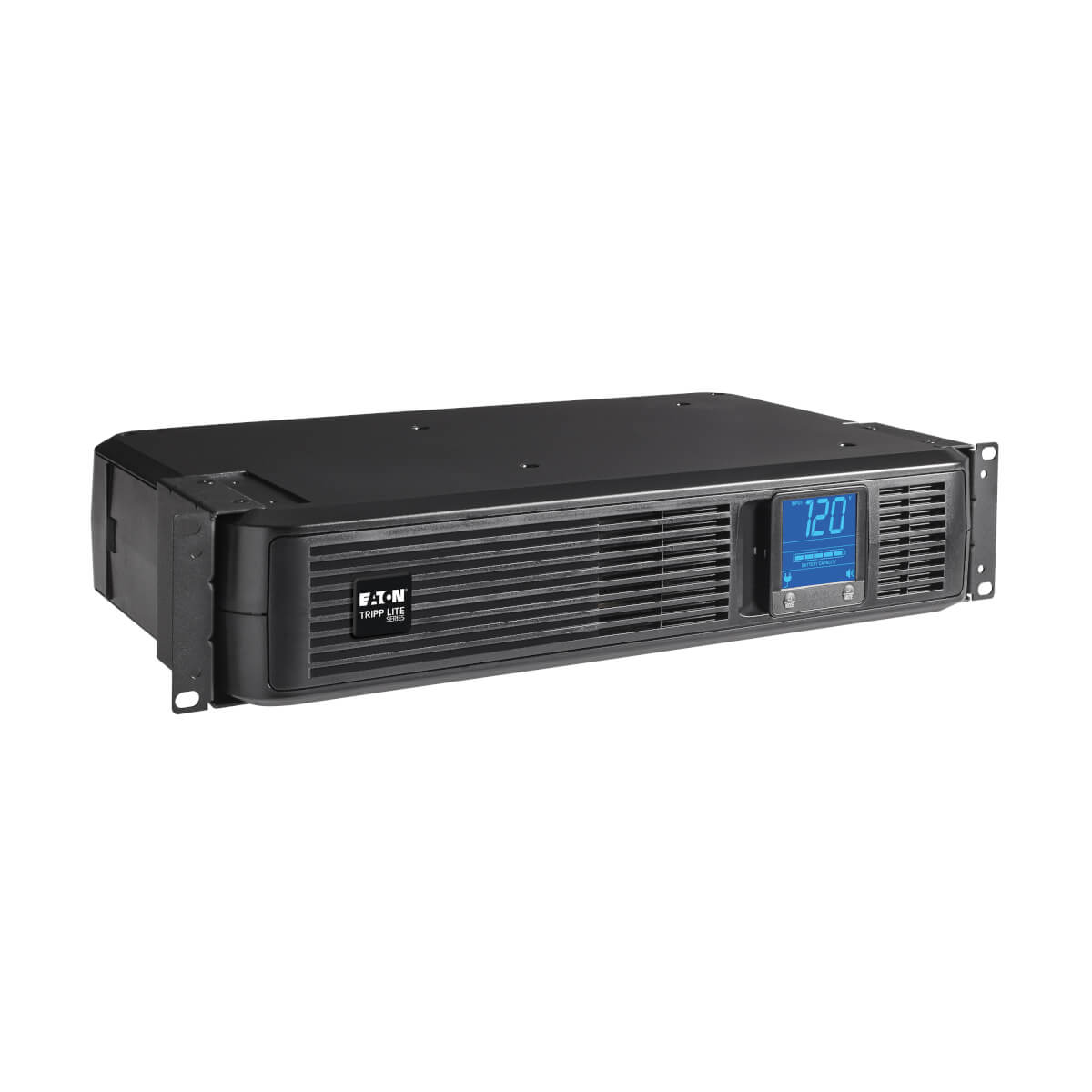

Tripp Lite SMART1500LCDXL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 8 AC outlet(s)

Tripp Lite SMART1500LCDXL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 8 AC outlet(s)

SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, Extended Run, 2U Rack/Tower, LCD Display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Accutech Data Supplies UPS TRPSMART1500LCDXL Register free see stock
Arlington Industries 8-OUT EX-RUN 2U LINE-INTERACTIVE UPS TRPSMART1500LCDXL
ASI Corp Tripp Lite SMART1500LCDXL SmartPro 1500VA Line Interactive UPS 900W 120V 15A 134292
BlueStar TRIPP LITE, 1500VA UPS SMART LCD AVR 120V EXT RUN USB DB9 RJ11 RJ45 2U RM SMART1500LCDXL
D&H 1500VA UPS Smart LCD AVR 120V SMART1500LCDXL
Ingram Micro UPS SMART 1500VA 900W LCD 120V LD8252
TD Synnex UPS 1500VA SMART AVR LCD USB DB9 2URM 3059357

Related Products

Description

Tripp Lite's SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery support, ideal for network equipment, phone systems, desktop PCs and home entertainment systems. Uninterruptible Power Supply / UPS system provides battery derived AC output to maintain continuous operation of connected equipment without data-loss during power failures and severe voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack. Interactive LCD display offers detailed site voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network Ethernet connection.
- SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
- Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord

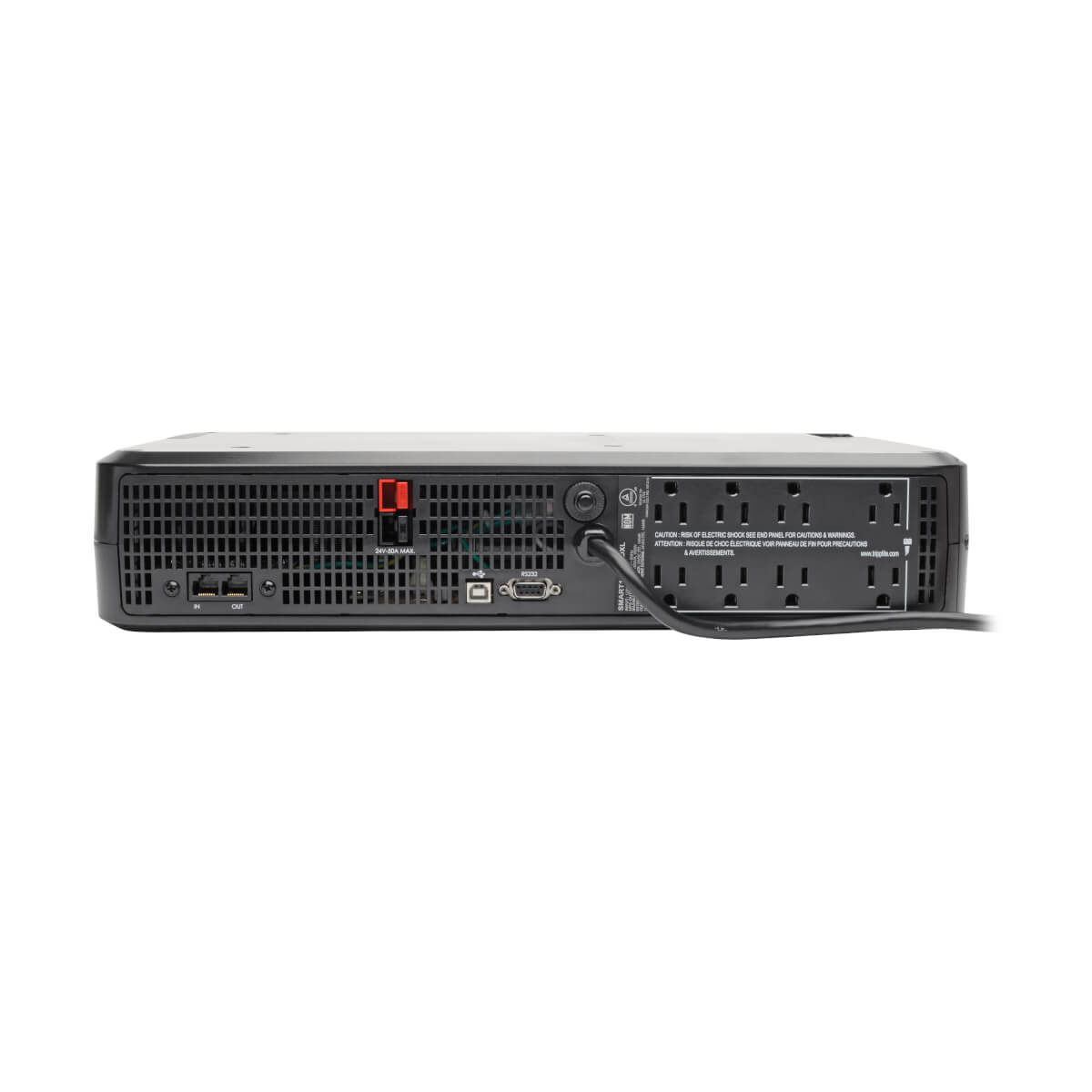

- 8 battery-supported NEMA 5-15R outlets
- Maintains operation of connected equipment during power failures and voltage fluctuations
- Runtime is expandable with one additional BP24V15RT2U external battery pack

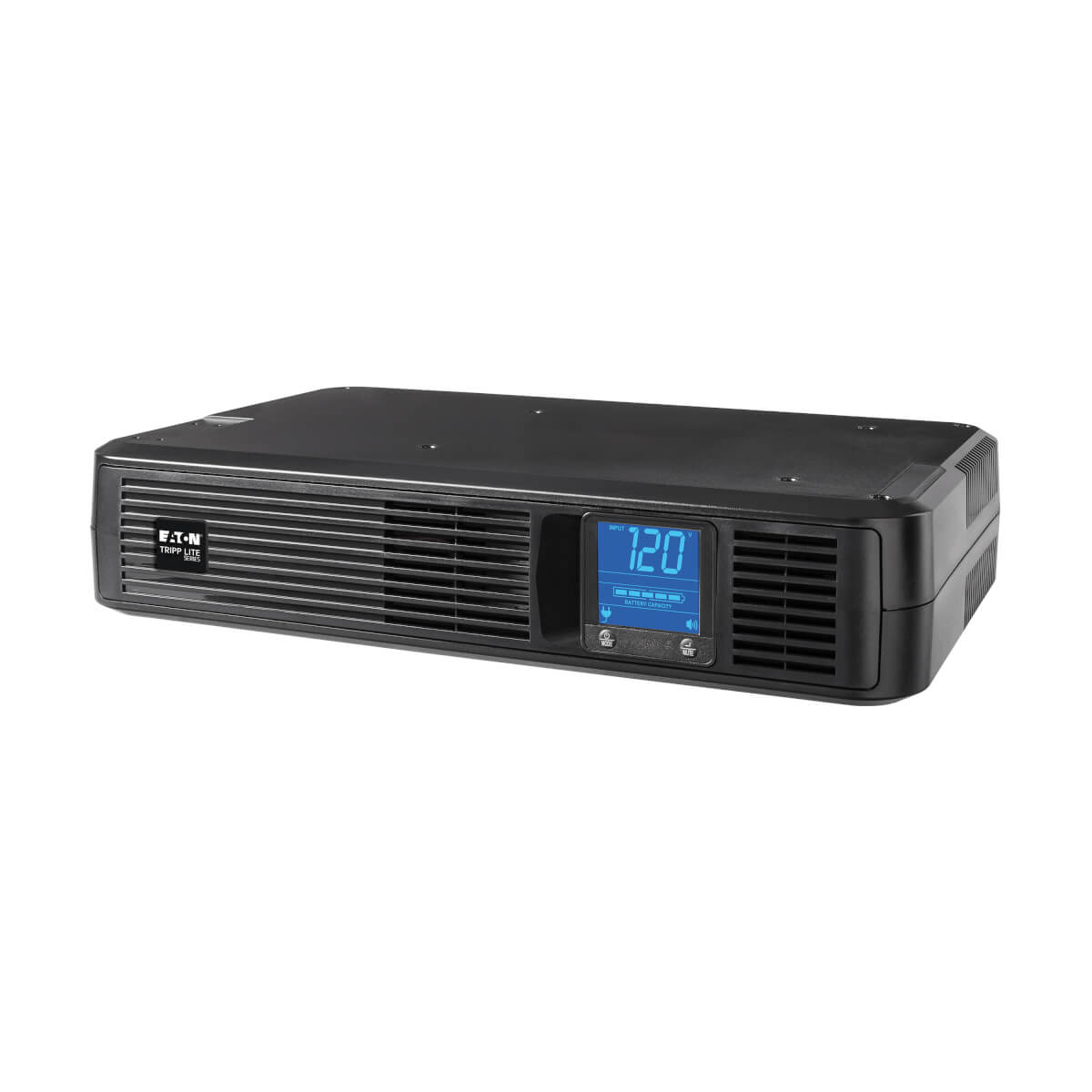

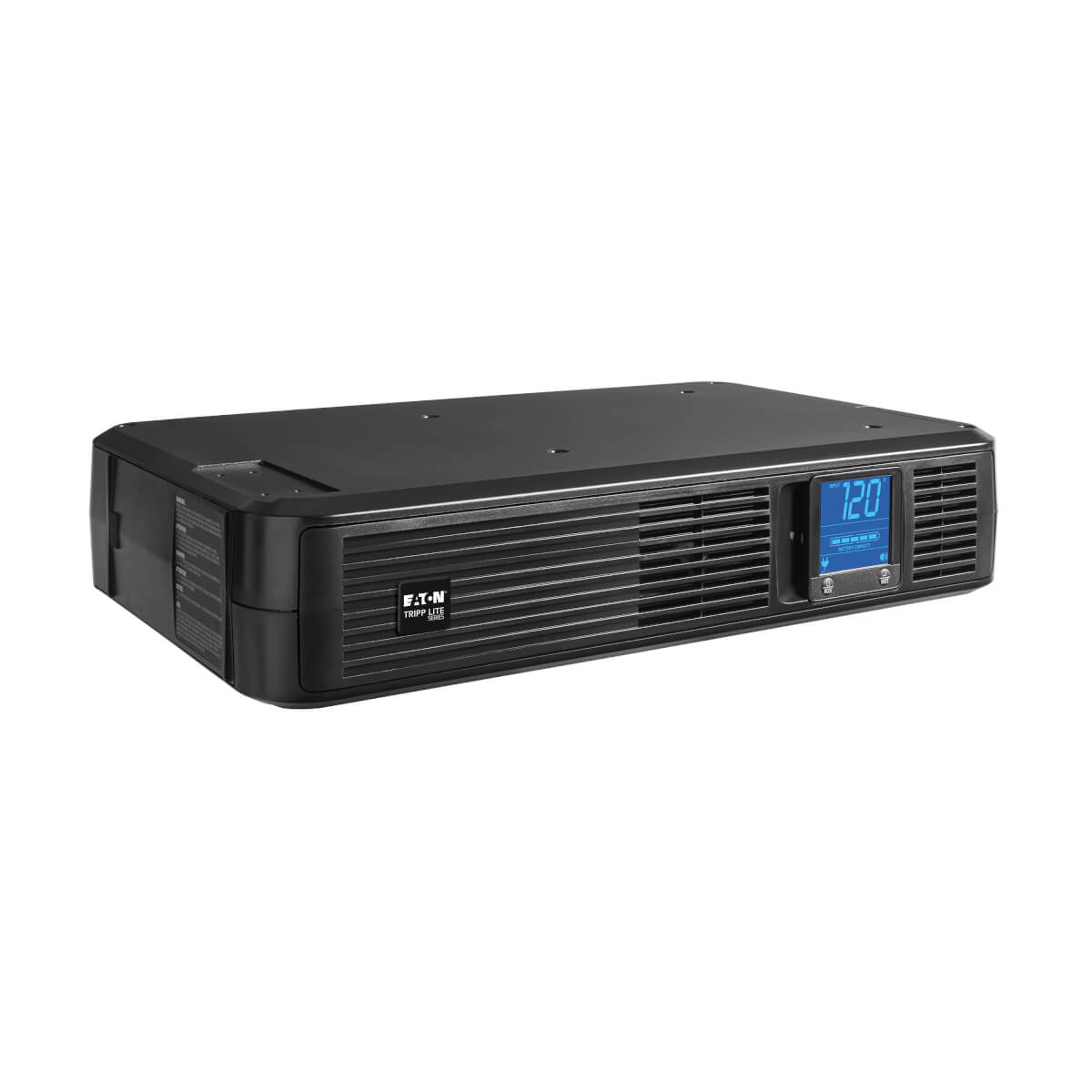

- LCD display reports numeric and icon-based UPS status and site power data
- Select and scroll buttons enable access to UPS control, operating and LCD display settings
- Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and Estimated Minutes Runtime data
- Icon-based display items include 5 "bar" battery capacity, UPS operating status, replace battery and voltage regulation status
- Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness

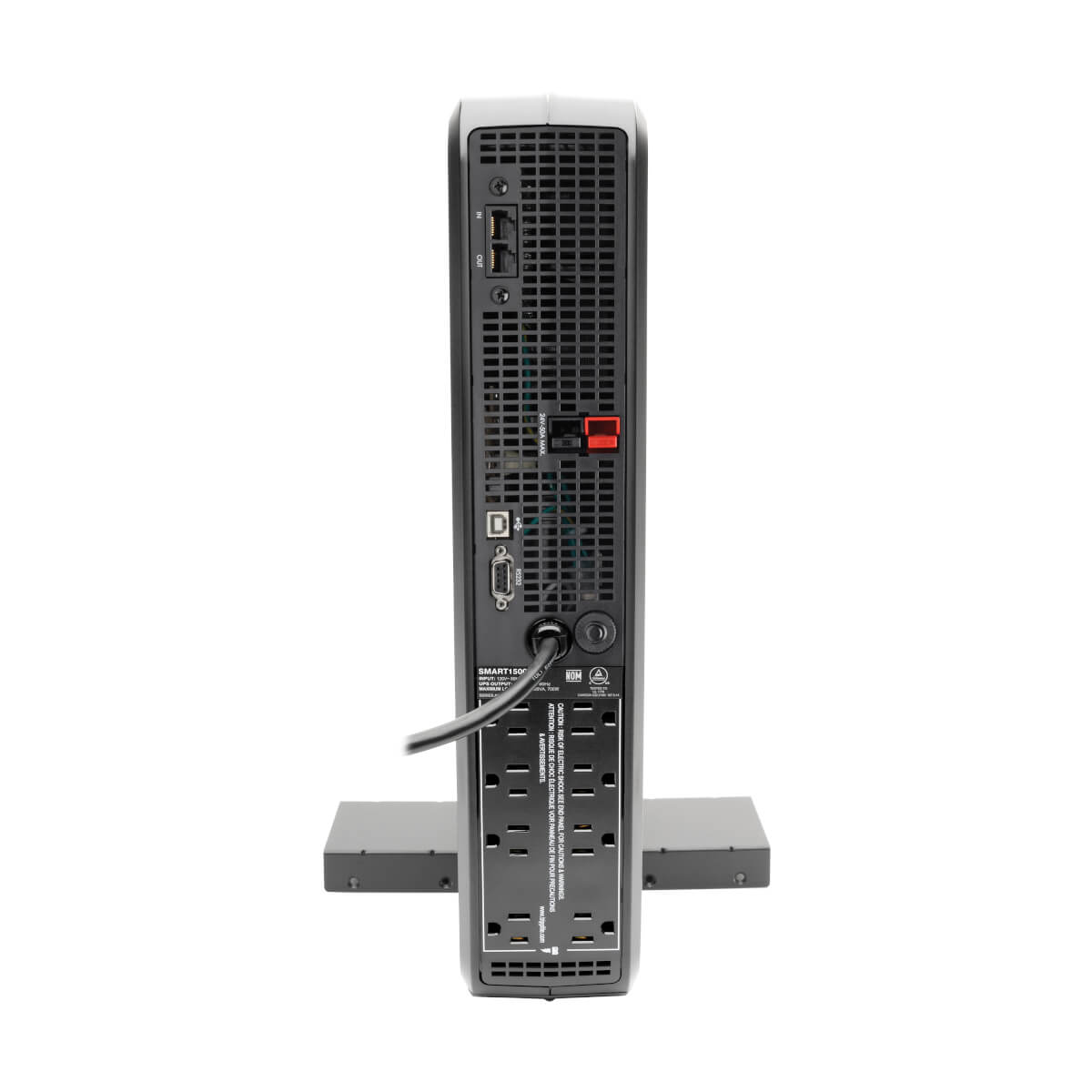

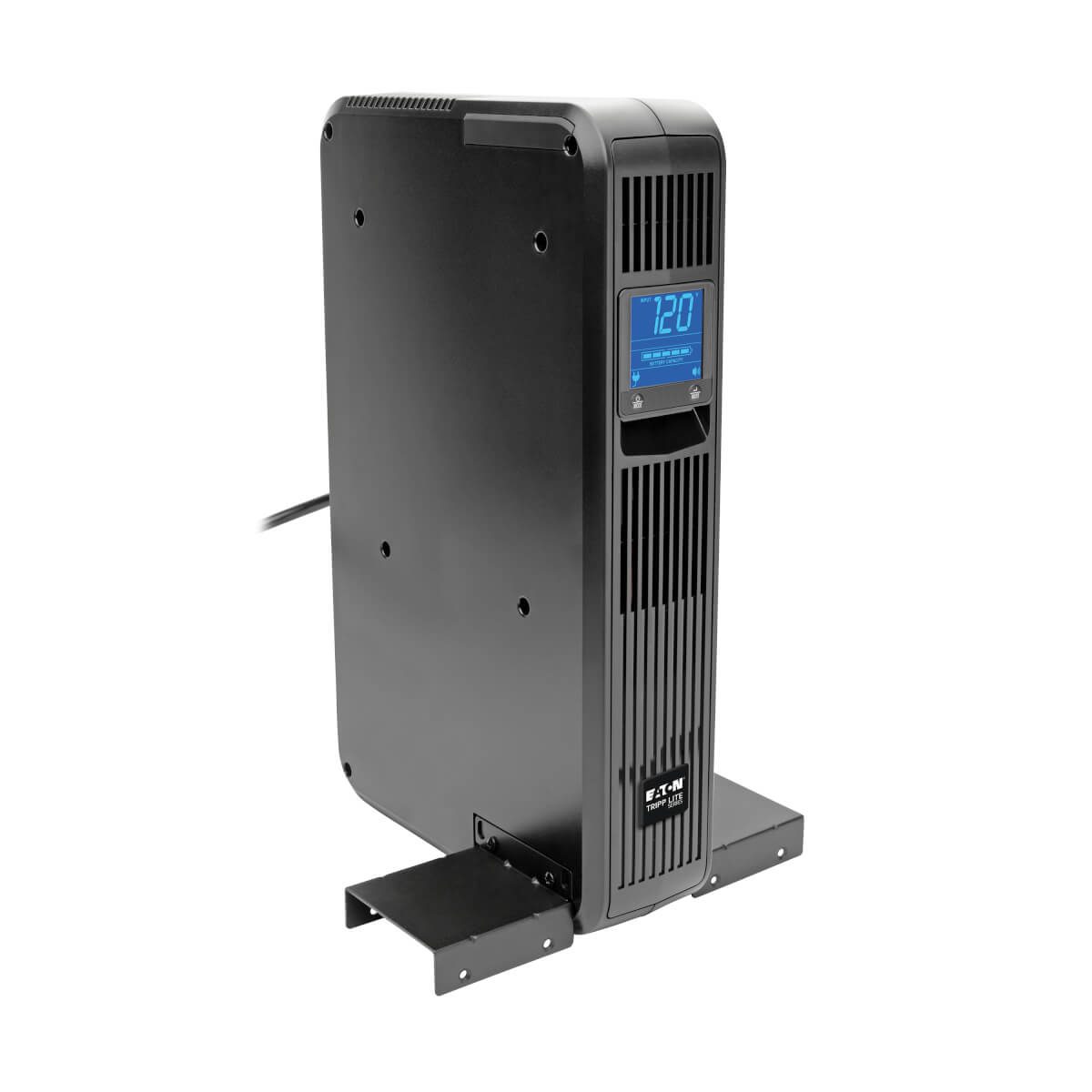

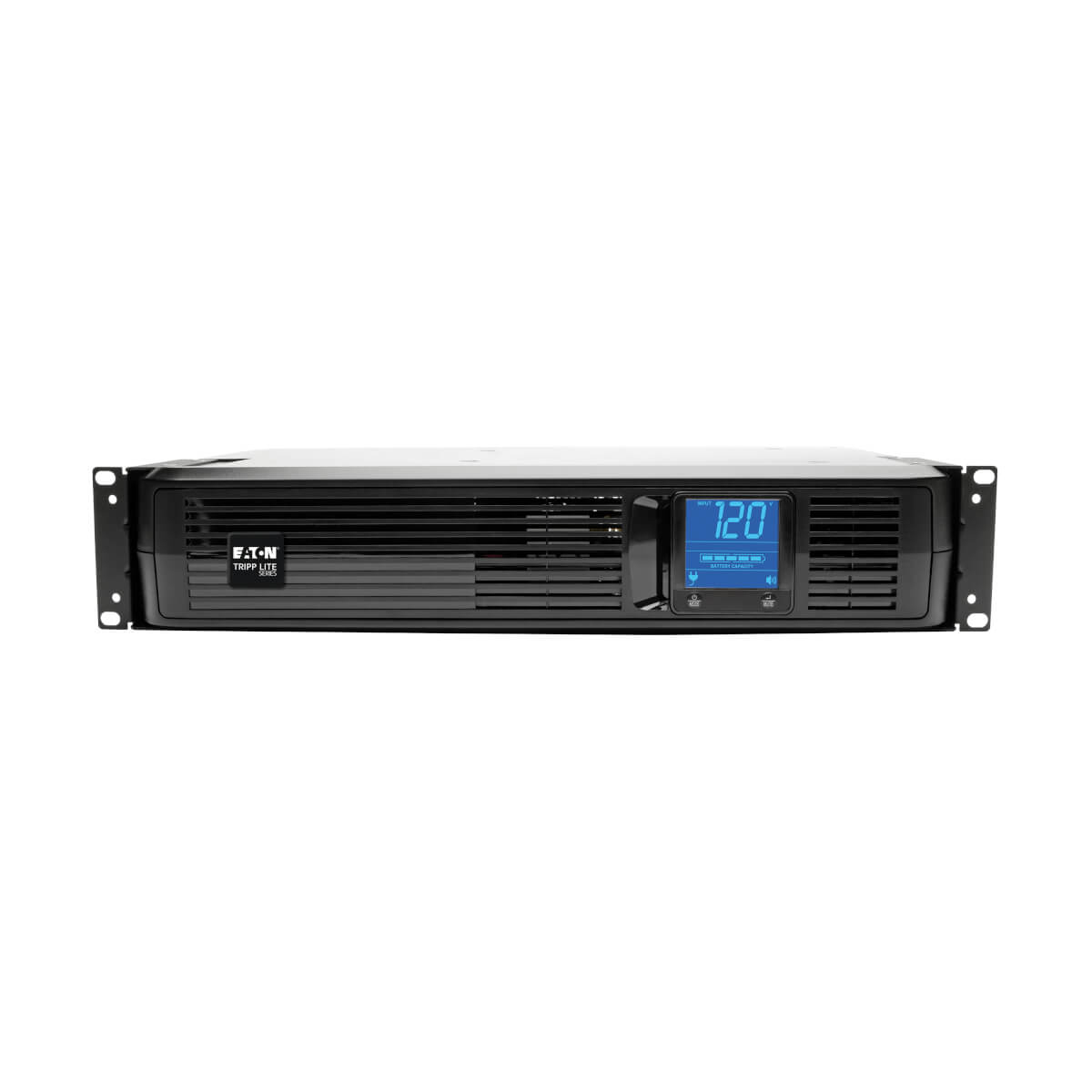

- Front-panel LCD screen rotates for horizontal or vertical installation options
- 97% line power mode efficiency operation
- Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V

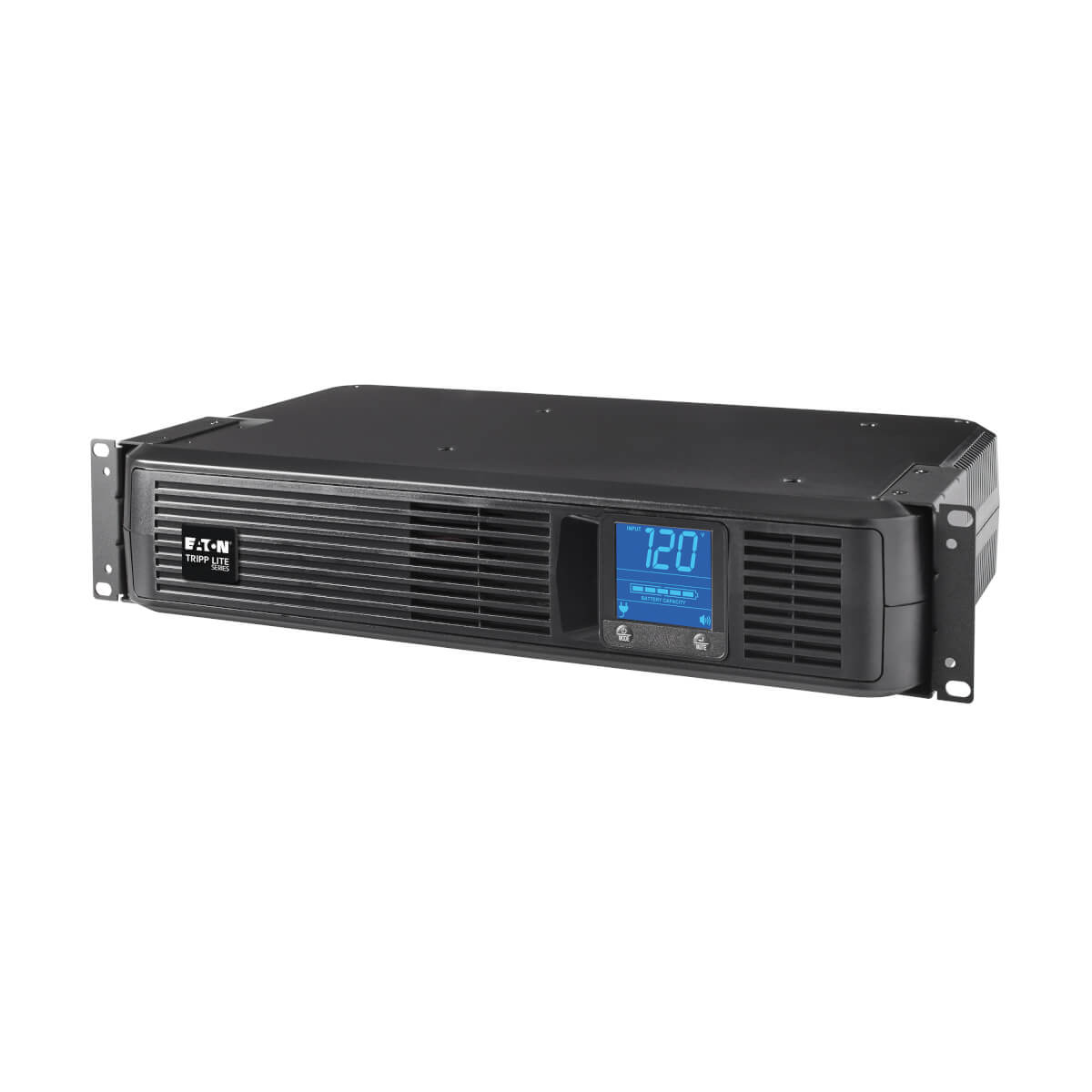

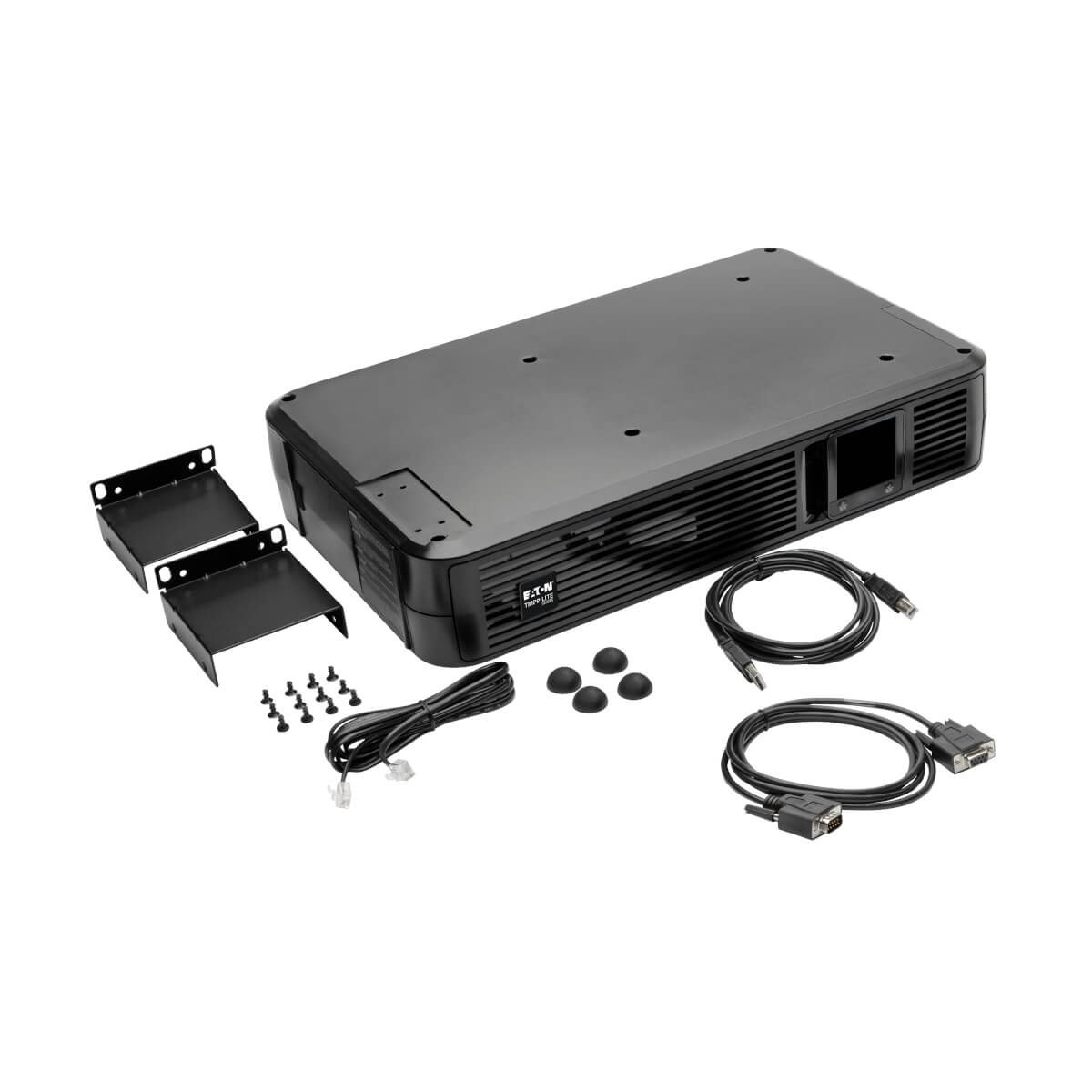

- Included mounting accessories for 2U rackmount and tower installation
- USB and DB9 serial ports enable optional unattended system shutdown using PowerAlert UPS management software available via free download
- HID-compliant USB interface enable integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial port also supports contact closure signaling for on-battery and power-restored messaging
- Built-in data line surge suppression jacks offer protection for equipment with single-line dialup or PoE compatible network ethernet connection

Specifications

Power
Output voltage regulation-18%, +8%%
Output power900 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating1038 J
Maximum current8.5 A
Efficiency95%
Output power capacity1.5 kVA
Input frequency60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Serial ports quantity1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protection featuresNetwork, Telephone
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originVietnam
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-18%, +8%%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power900 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating1038 J
Maximum current8.5 A
Efficiency95%
EMI/RFI noise filteringYes
Surge protection featuresNetwork, Telephone
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Output power capacity1.5 kVA
Input frequency60 Hz
Battery

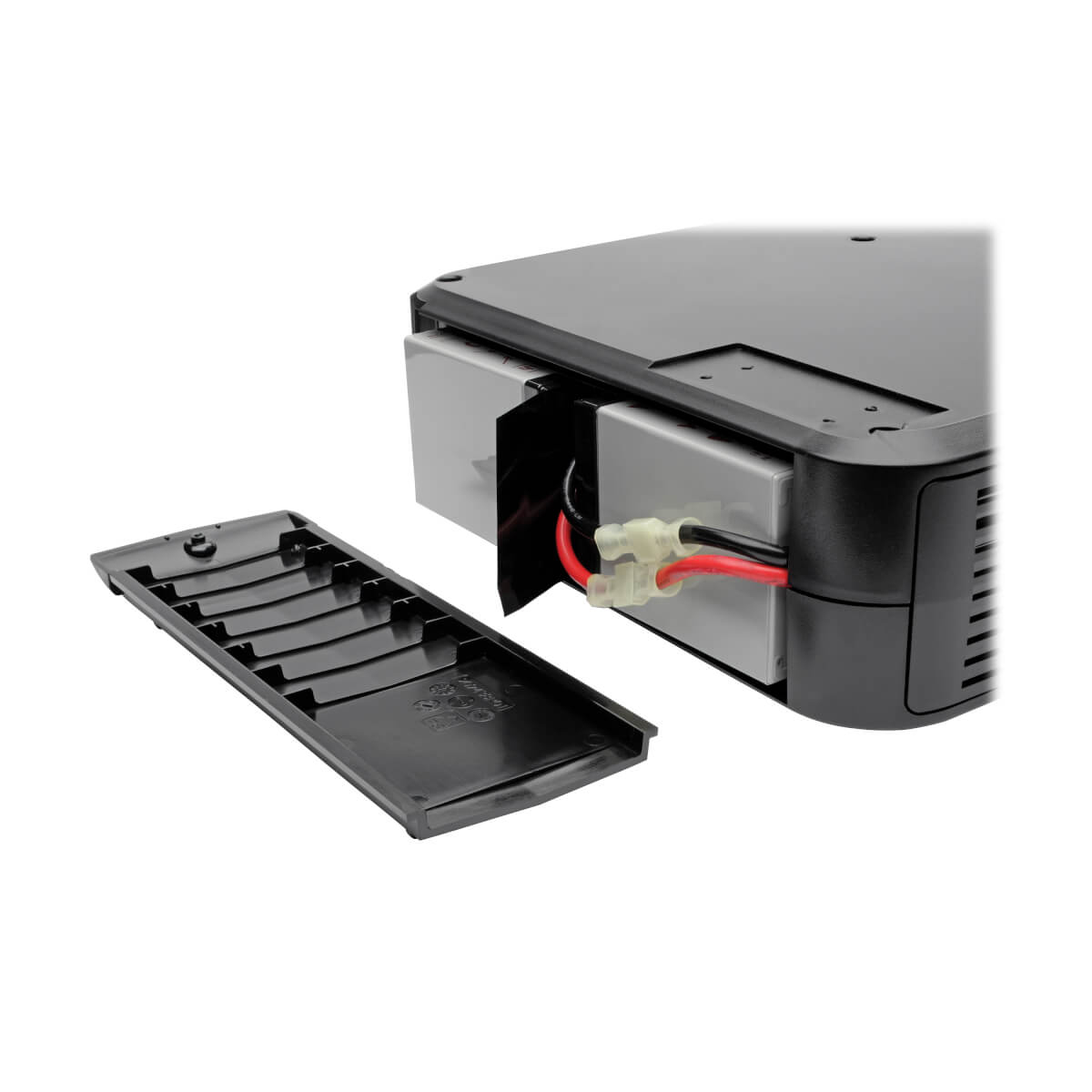

Battery technologySealed Lead Acid (VRLA)
Battery recharge time4.5 h
Typical backup time at half load12 min
Typical backup time at full load4 min
Cold startYes
Design
Country of originVietnam
Rack capacity2U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, NOM, FCC
Cable length70.9" (1.8 m)
Housing materialAcrylonitrile butadiene styrene (ABS)
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width21.8" (553 mm)
Package depth15.3" (388.1 mm)
Package height7.8" (198.1 mm)
Weight29.3 lbs (13.3 kg)
Width17.3" (440.2 mm)
Package weight35.9 lbs (16.3 kg)
Height3.49" (88.6 mm)
Depth10.7" (271.3 mm)
Packaging data
Package width21.8" (553 mm)
Package depth15.3" (388.1 mm)
Package height7.8" (198.1 mm)
Package weight35.9 lbs (16.3 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width21.8" (553 mm)
Master (outer) case length15.3" (388.1 mm)
Master (outer) case height7.8" (198.1 mm)
Master (outer) case gross weight33.5 lbs (15.2 kg)
Certificates
CertificationUL1778, CSA, NOM, FCC
