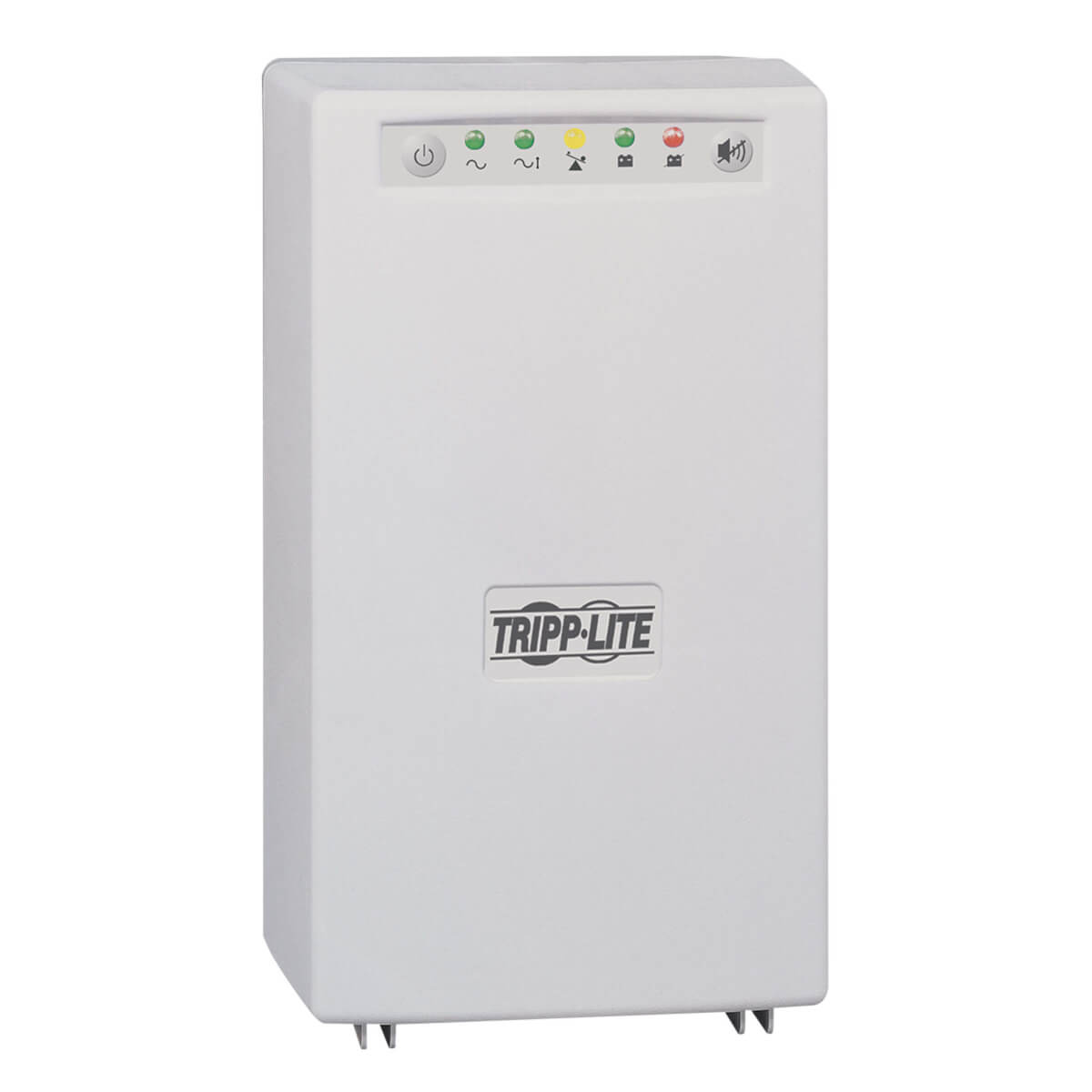

Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation

Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation

Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation, Line-Interactive, 0.7 kVA, 450 W, Sine, 230 V, 230 V

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 700VA INTL UPS SMART PRO 230VLINE INTERACTIVE 6 OUTLETSLITHIUM BATTERY 9783956 Register free see stock
Ingram Micro UPS MEDICAL-GRADE LINE-INT 230V JQ0152
ScanSource 700VA 450W 230V Lithium Ion UP POW-SMX700HGL
TD Synnex 700VA 450W 230V LITHIUM ION UPS SMART TOWER HOSPITAL MEDICAL 5392195

Related Products

Description

Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 450 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 14.5 min, Typical backup time at half load: 36 min. Form factor: Tower, Product color: Gray, Housing material: Polyvinyl chloride (PVC). Width: 7.5" (190.5 mm), Depth: 9.05" (229.9 mm), Height: 12.7" (322.6 mm)

Specifications

Power
Output power450 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating340 J
Maximum current10 A
Output power capacity0.7 kVA
Performance
UPS topologyLine-Interactive
WaveformSine
Number of input phases1
Features
Country of originChina
UPS topologyLine-Interactive
WaveformSine
Number of input phases1
Output power450 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating340 J
Maximum current10 A
Output power capacity0.7 kVA
Ports & interfaces
USB portYes
Serial interfaceYes

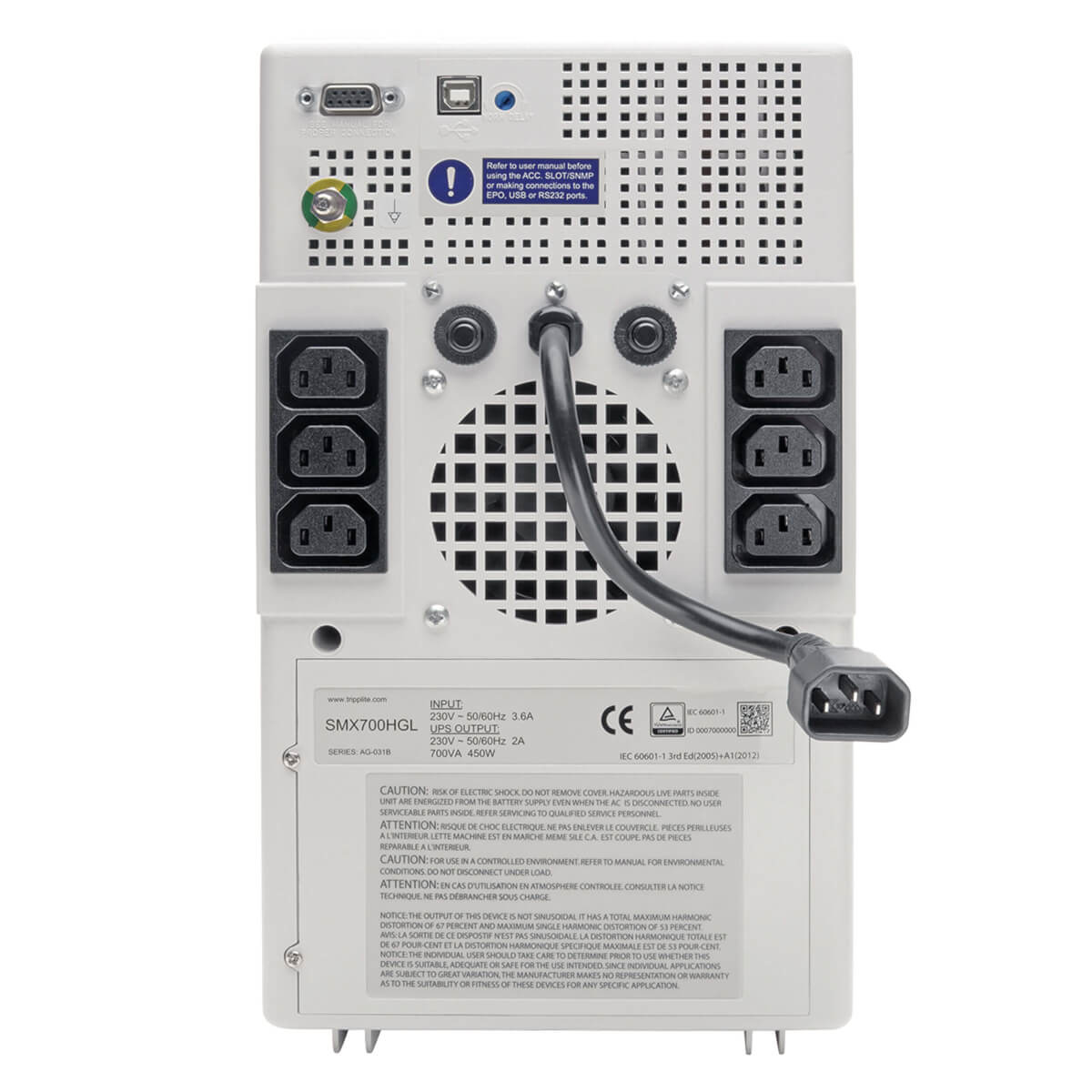

AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Battery
Typical backup time at half load36 min
Typical backup time at full load14.5 min
Design
Country of originChina
Form factorTower
Product colourGray
CertificationCE, UL60601-1
Housing materialPolyvinyl chloride (PVC)
Operational conditions
Operating temperature (T-T)32 - 104 °C
Storage temperature (T-T)5 - 122 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Harmonized System (HS) code85078000
Weight & dimensions
Package width12.2" (309.9 mm)
Package depth13.4" (339.9 mm)
Package height18.5" (469.9 mm)
Weight31.5 lbs (14.3 kg)
Width7.5" (190.5 mm)
Package weight34.8 lbs (15.8 kg)
Height12.7" (322.6 mm)
Depth9.05" (229.9 mm)
Packaging data
Package width12.2" (309.9 mm)
Package depth13.4" (339.9 mm)
Package height18.5" (469.9 mm)
Package weight34.8 lbs (15.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width12.2" (309.9 mm)
Master (outer) case length13.4" (339.9 mm)
Master (outer) case height18.5" (469.9 mm)
Master (outer) case gross weight34.8 lbs (15.8 kg)
Master (outer) case GTIN (EAN/UPC)00037332224804
Harmonized System (HS) code85078000
Certificates
CertificationCE, UL60601-1
